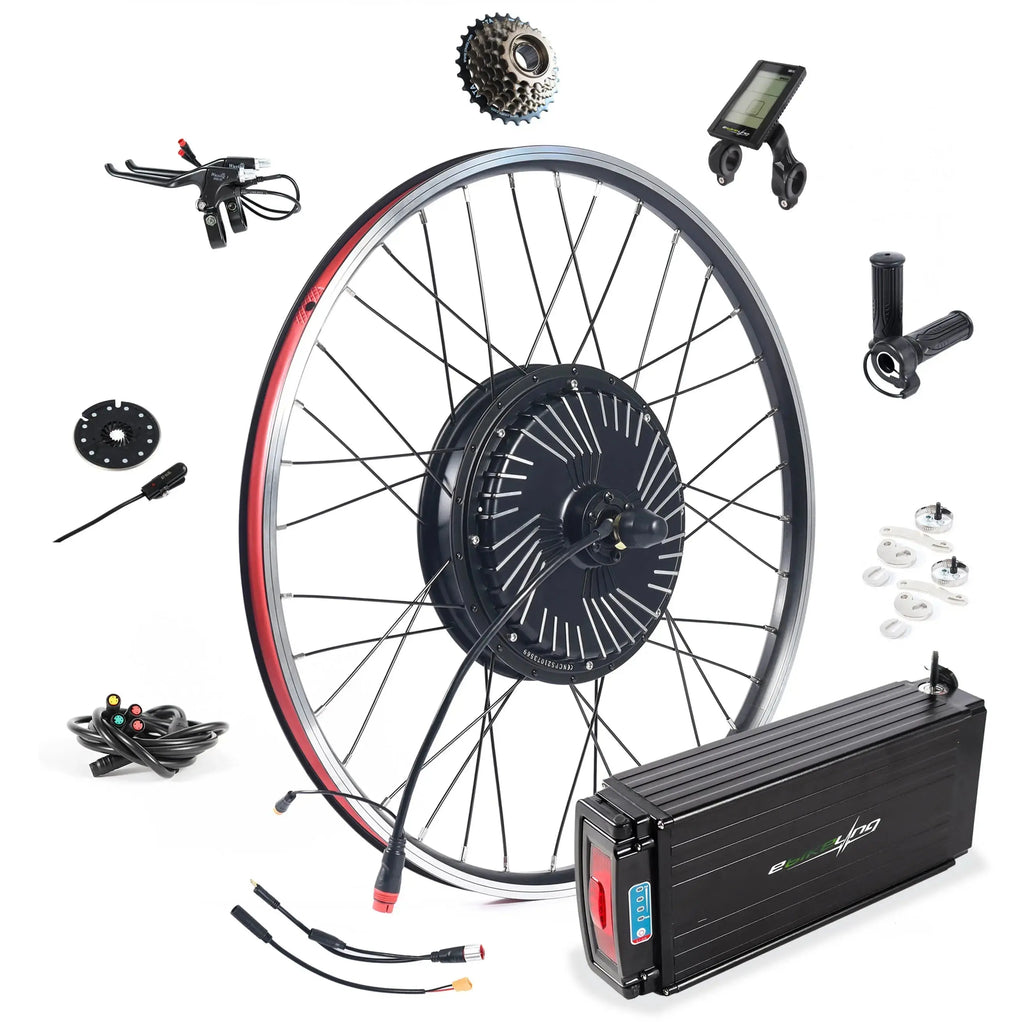

Refurbished Built-in Controller 48V 1200W Rear Wheel Ebike Conversion Kit
| UNIT | 500W 20" | 500W 26" | 500W 700C | 500W 26" Fat |
|---|---|---|---|---|
| Compatible Tire Width: | 1.75", 1.95", 2.125" | 1.75", 1.95", 2.125" | 28C, 32C, 35C | 4.0" |
| Rim Width: | 24 mm | 24 mm | 24 mm | 80 mm |
| Rim Diameter (Outer): | 419 mm | 572 mm | 633 mm | 572 mm |
| Rim Diameter (Inner): | 369 mm | 522 mm | 583 mm | 535 mm |
| Spoke Size: | 122 mm 12G Carbon Steel Copper Nipples | 214 mm 12G Carbon Steel Copper Nipples | 234 mm 12G Carbon Steel Copper Nipples | 195 mm 12G Carbon Steel Copper Nipples |
| Rear Dropout: | 135 mm | 135 mm | 135 mm | 175 mm |
| Front Dropout: | 100 mm | 101 mm | 101 mm | 135 mm |
| Rear Axle Length: | 199 mm | 199 mm | 199 mm | 250 mm |
| Front Axle Length: | 165 mm | 165 mm | 165 mm | 190 mm |
| Motor/Wheel Weight (lbs): | 8 | 7.4 | 7.4 | 9.04 |
| Motor Torque (Peak): | 35Nm | 40Nm Efficiency: >80% | 40Nm Efficiency: >80% | 40Nm Efficiency: >80% |
| Motor RPM (Nominal Speed): | 260rpm@36V | 300 | 300 | 300 |
| Motor Hub Diameter: | 158 mm | 158 mm | 158 mm | 158 mm |
| Motor Magnets: | 20 | 20 | 20 | 20 |
| Peak Power (kW): | 0.65kW@36V | 0.84 | 0.84 | 0.84 |
| Operating Mode: | Hall Sensor | Hall Sensor | Hall Sensor | Hall Sensor |
| Axle Diameter: | 12 mm | 12 mm | 12 mm | 12 mm |
| Axle Pitch: | 1.25 mm | 1.25 mm | 1.25 mm | 1.25 mm |
| Axle Flat: | 10 mm | 10 mm | 10 mm | 10 mm |
| Gears (Rear motors only): | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) |
| Pedal Assist: | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable |
| Pedal Assist Sensor: | Cadence | Cadence | Cadence | Cadence |
| Motor RPM (No Load): | 300rpm@36V | 333 | 333 | 333 |
| Top Speed (mph): | 18.5mph@36V | 19.5mph@36v | 21-40 | 18-21 |
| Controller: | 36v/48v 22A | 36v/48v 22A | 36v/48v 22A | 36v/48v 22A |
| Controller dimensions: | 5.63*2.4*1.55 in | 5.63*2.4*1.55 in | 5.63*2.4*1.55 in | 5.63*2.4*1.55 in |
| Recommended Batteries: | 36v Li-Ion | 36v Li-Ion | 36v Li-Ion | 36v Li-Ion |
| Battery Connector required: | XT60 Female | XT60 Female | XT60 Female | XT60 Female |
| Amps (Peak): | 22 | 22 | 22 | 22 |
| Amps (continuous): | 15-16 | 15-16 | 15-16 | 15-16 |
| Motor Cable Type: | 9 pin Julet Type | 9 pin Julet Type | 9 pin Julet Type | 9 pin Julet Type |
| Rear Motor Cable Length: | 36" | 36" | 36" | 36" |
| Front Motor Cable Length: | 67" | 67" | 67" | 67" |
| 1T4 Cable Type: | 8 pin Julet Type | 8 pin Julet Type | 8 pin Julet Type | 8 pin Julet Type |
| 1T4 Cable Length: | 74" | 74" | 74" | 74" |
| IP Rating | 65 | 65 | 65 | 65 |
