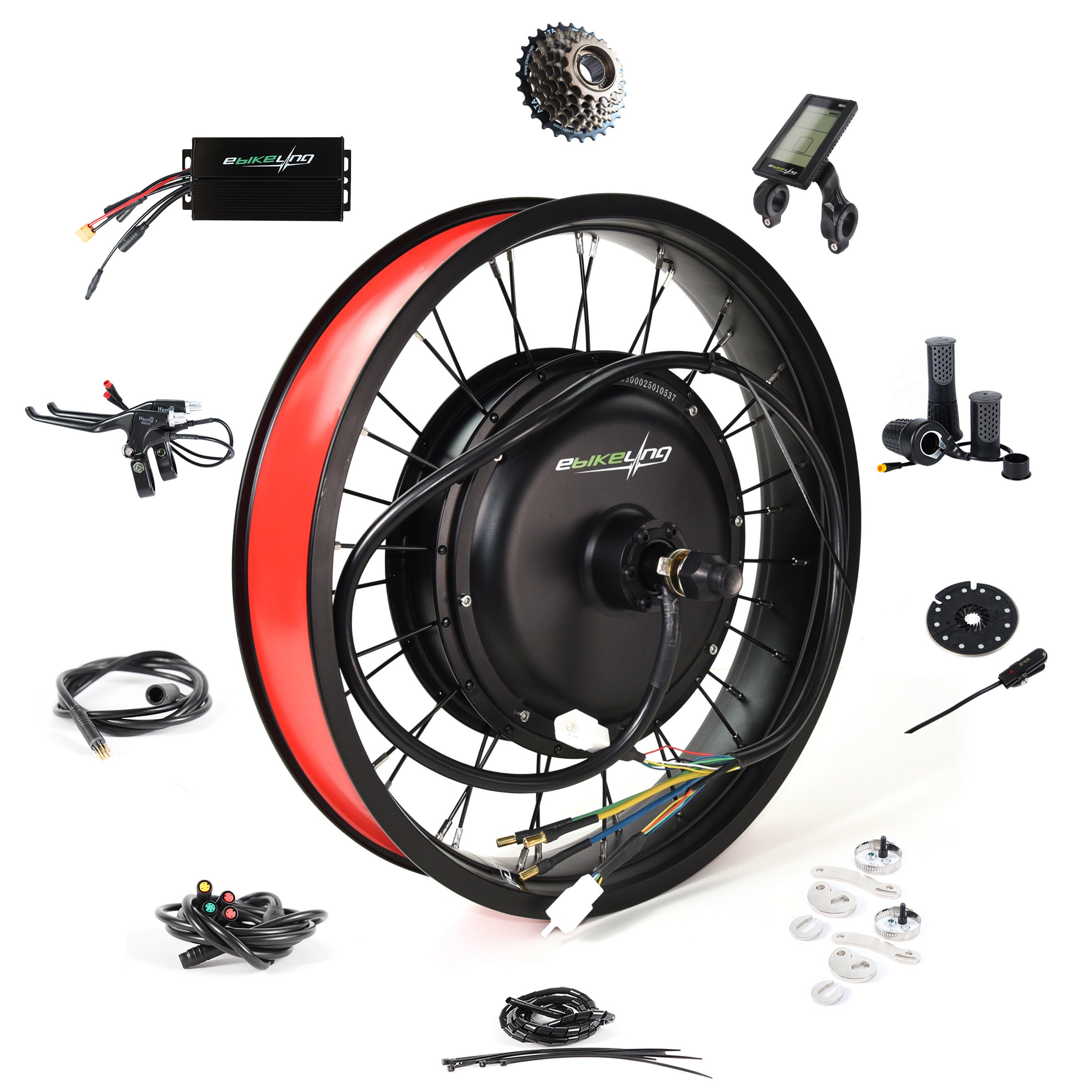

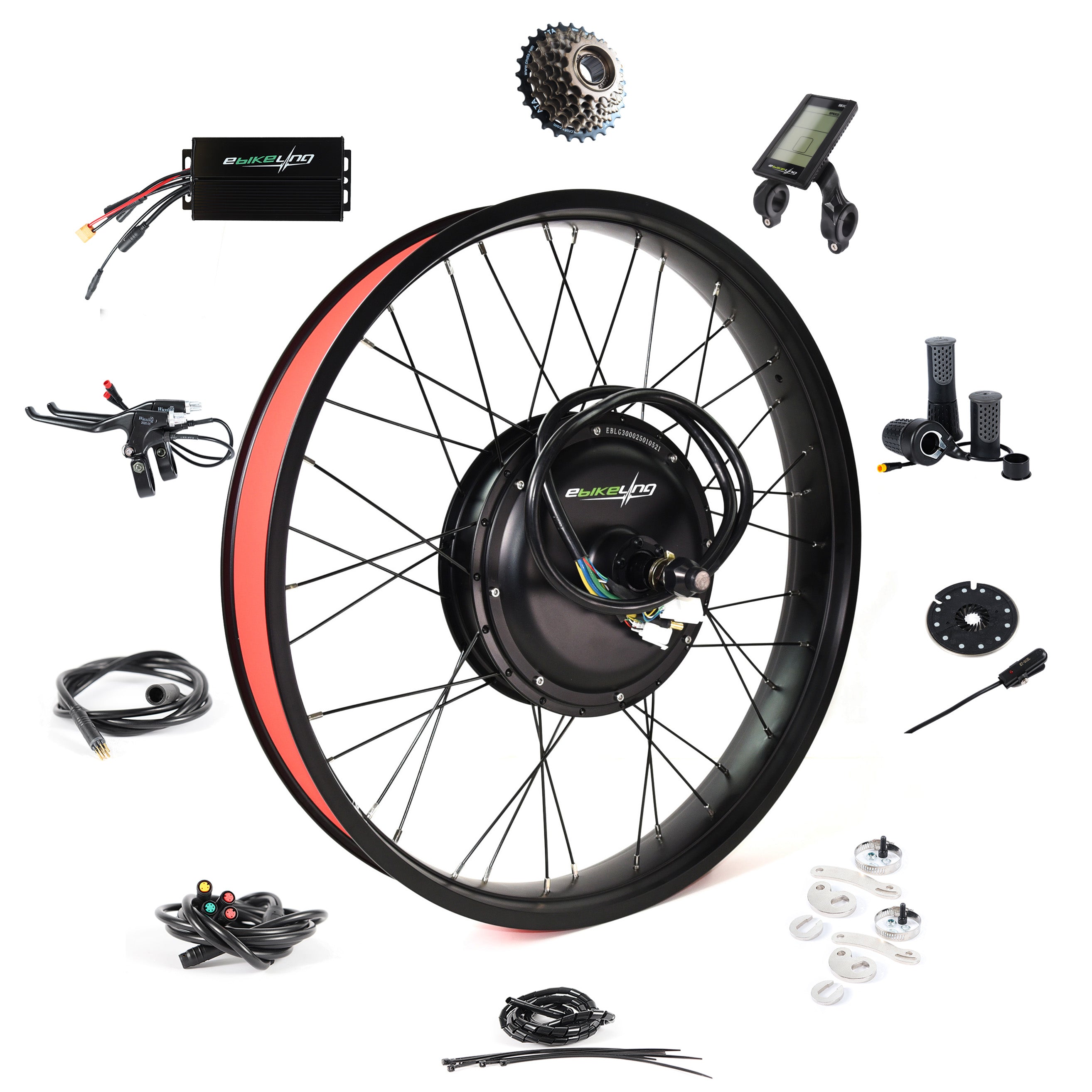

3000W Direct-Drive Ebike Conversion Kit

SKU: C-20FAT-3000-R-3020

$599.99
Mount
Size
Custom Title

Helmet – D.O.T. Approved

$73.99

Custom Title

Phone Holder

$14.99

Custom Title

Ebike Headlight

$29.99

Custom Title

Suspension Seat

$19.87

Custom Title

Bike Saddle Bag

$11.99

Custom Title

Bike Pannier Bag

$24.99

Custom Title

Half Twist Throttle

$26.99

Custom Title

Suspension Seat Post

$29.99

Specifications +
UNIT 3000W 26" 3000W 29" 3000W 20" FAT 3000W 26" FAT
Compatible Tire Width2.1", 2.125", 2.3", 2.5", 3"32C, 35C, 38C, 40C4.0"4.0"
Rim Width29.6 mm29.6 mm80 mm80 mm
Rim Diameter (Outer)572 mm633 mm418 mm572 mm
Rim Diameter (Inner)522 mm583 mm380 mm535 mm
Spoke Size159 mm 12G Carbon Steel Copper Nipples188 mm 12G Carbon Steel Copper Nipples72 mm 12G Carbon Steel Copper Nipples12G Carbon Steel Copper Nipples
Rear Dropout150 mm150 mm175 mm175 mm
Rear Axle Length234 mm234 mm238 mm238 mm
Motor/Wheel Weight (lbs)25.325.325.325.3
Motor Torque (Peak)110 Nm110 Nm110 Nm110 Nm
Motor RPM (Nominal Speed)840@72V840@72V840@72V840@72V
Motor Hub Diameter242 mm242 mm242 mm242 mm
Motor Magnets45H45H45H45H
Peak Power (kW)4444
Operating ModeHall SensorHall SensorHall SensorHall Sensor
Axle Diameter16 mm16 mm16 mm16 mm
Axle Pitch1.5 mm1.5 mm1.5 mm1.5 mm
Axle Flat10 mm10 mm10 mm10 mm
Gears (Rear motors only)7 Speed Freewheel (Not a cassette)7 Speed Freewheel (Not a cassette)7 Speed Freewheel (Not a cassette)7 Speed Freewheel (Not a cassette)
Pedal Assist3, 5, 9 Level Adjustable3, 5, 9 Level Adjustable3, 5, 9 Level Adjustable3, 5, 9 Level Adjustable
Pedal Assist SensorCadenceCadenceCadenceCadence
Motor RPM (No Load)900@72V900@72V900@72V900@72V
Top Speed (mph)52-5555-5855-5855-58
Controller48V/72V 60A48V/72V 60A48V/72V 60A48V/72V 60A
Controller Dimensions8.35 × 4.53 × 2.1 in8.35 × 4.53 × 2.1 in8.35 × 4.53 × 2.1 in8.35 × 4.53 × 2.1 in
Recommended Batteries48V / 52V / 60V / 72V48V / 52V / 60V / 72V48V / 52V / 60V / 72V48V / 52V / 60V / 72V
Battery Connector RequiredXT90 FemaleXT90 FemaleXT90 FemaleXT90 Female
Amps (Peak)60606060
Amps (Continuous)50–5550–5550–5550–55
Motor Cable Type5 pin Molex5 pin Molex5 pin Molex5 pin Molex
IP Rating65656565
Shipping +

We aim to process all orders within 1 business day. Orders over $50 qualify for free shipping to the Lower-48 states.

Shipping to Hawaii, Alaska, APO (Army Post Office), FPO (Fleet Post Office), and Puerto Rico is the responsibility of the buyer regardless of the order total.

We offer shipping via USPS, UPS, and FedEx, with express services available at checkout for an additional cost. The estimated delivery time within the US is 2 to 5 business days.

Once your order has been shipped, you will receive an email with a tracking number to monitor the progress of your package(s). Please note that orders exceeding $100 require a signature upon delivery, unless otherwise requested. If you prefer not to sign for your package, please contact us prior to your purchase to arrange for this.

In the event of a failed delivery, your package(s) will either be rescheduled for the next day or transferred to a local USPS/UPS/FedEx office. Pickup will be available for the following 5 business days. Please ensure that the address in your PayPal account matches the delivery address you would like us to use. If you need to change your address, please contact our customer service team to confirm the change.

INTERNATIONAL SHIPMENTS

If you choose to use USPS for international shipments, please note that USPS does not offer tracking or insurance for packages outside of the United States. Buyers are responsible for all shipping costs and duties required by their respective countries. We do not offer any warranty for international orders and shipments. Please check with your local customs office for more information about import fees and regulations.

Manuals +

READY TO CONVERT YOUR BIKE?
Converting your bike can be an exciting project, but it can also be overwhelming without proper guidance. Our manuals page offers comprehensive instructions and helpful videos to assist you in the process. Whether you're looking to add an electric motor or upgrade your components, our resources will ensure that you can tackle the task with confidence. Start your bike conversion journey today by visiting our manuals page!

Click here to visit our manuals page for step-by-step instructions and helpful videos to guide you through the process!

Download Manual
We Feel Your Passion

Enjoy the Ride

We strive for quality, aesthetics and mixing our shared passions for cycling, enthusiasm & sustainability.

JOURNEY

EMPOWER YOUR RIDE, EMBRACE YOUR ADVENTURE.

Ride with confidence and take on any terrain with our powerful electric bike conversion kits. Engineered with the highest quality materials, eBikeling is designed to handle any adventure, whether you're cruising through the city streets or exploring the great outdoors.

Take control of your journey and go wherever the road takes you with eBikeling.

How To:

Rear Conversion Kit Installation Tutorial

Looking to upgrade your bike to an electric one? Check out our installation video for the eBikeling conversion kit, designed to make transforming your bike into an electric powerhouse a breeze. In this step-by-step tutorial, we'll guide you through the process of installing the kit, including everything from attaching the motor to wiring up the battery.
