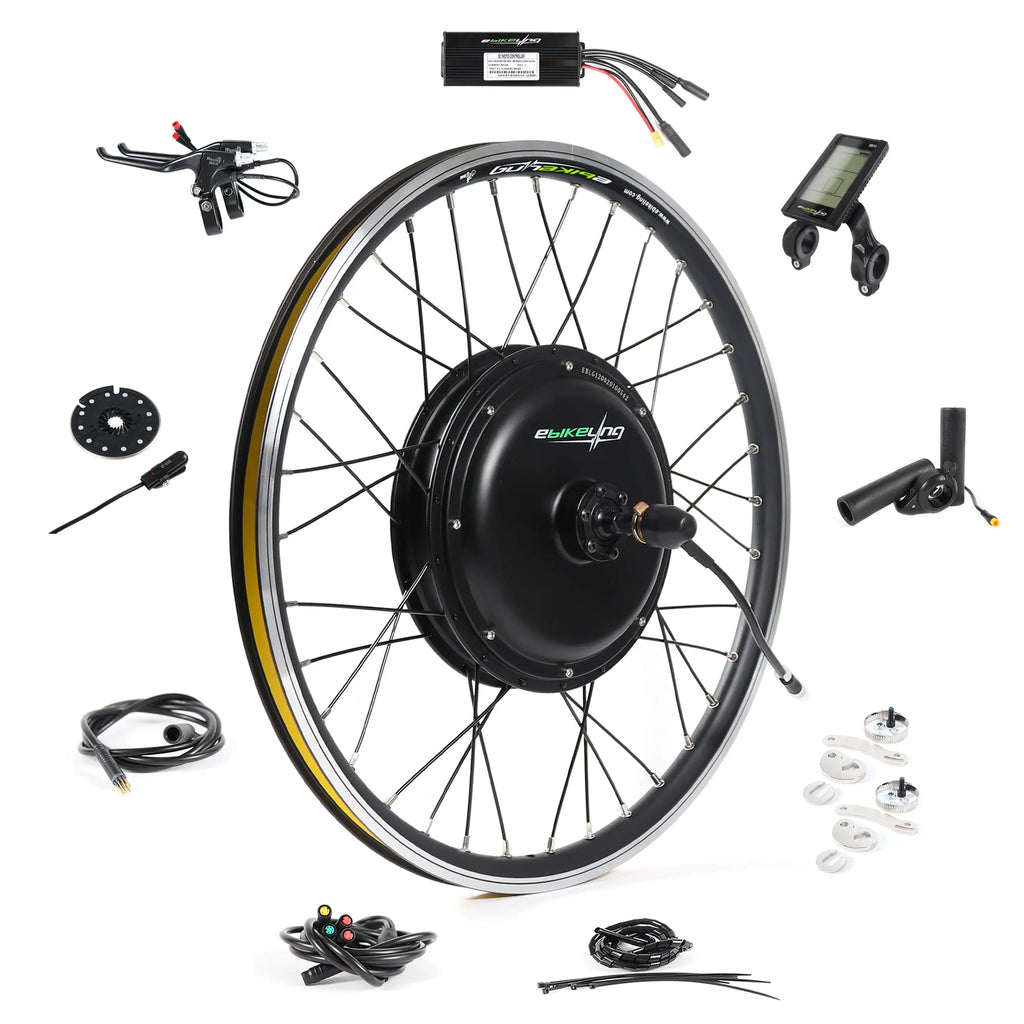

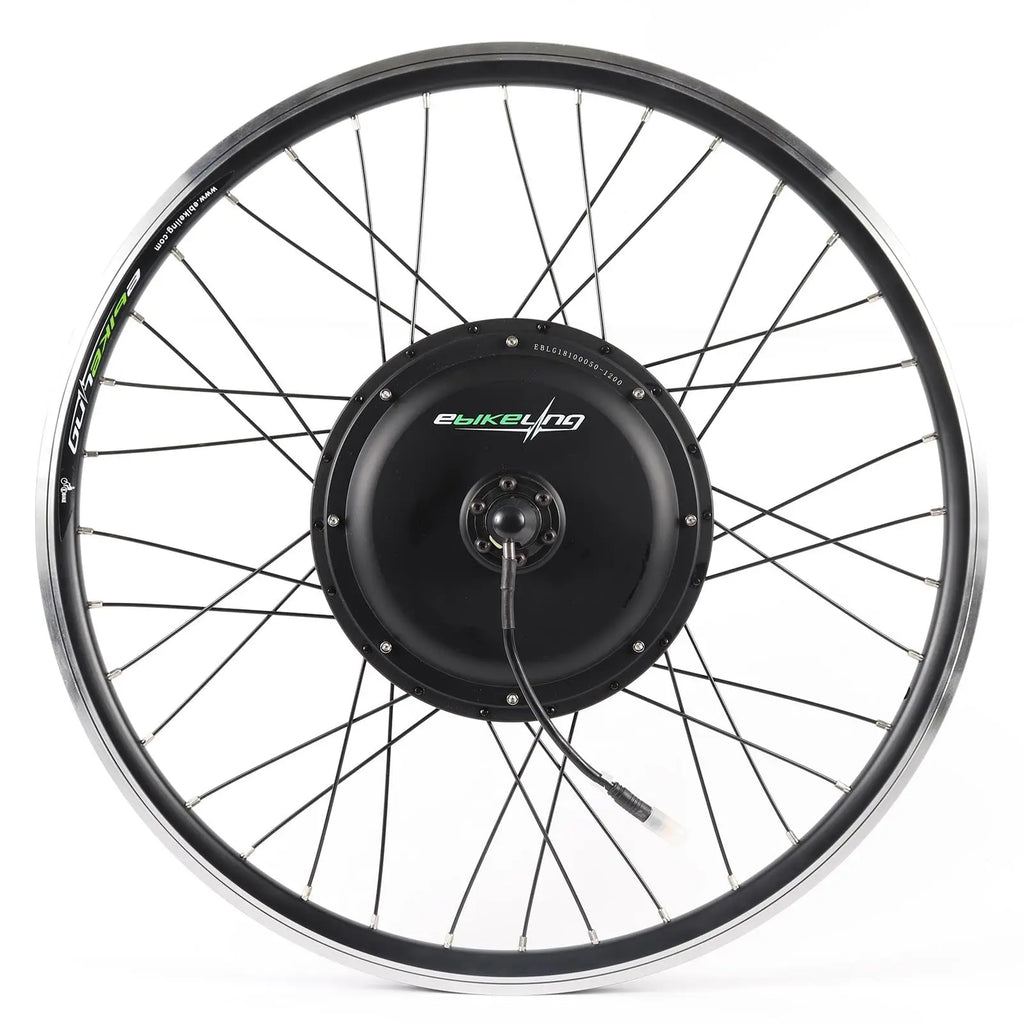

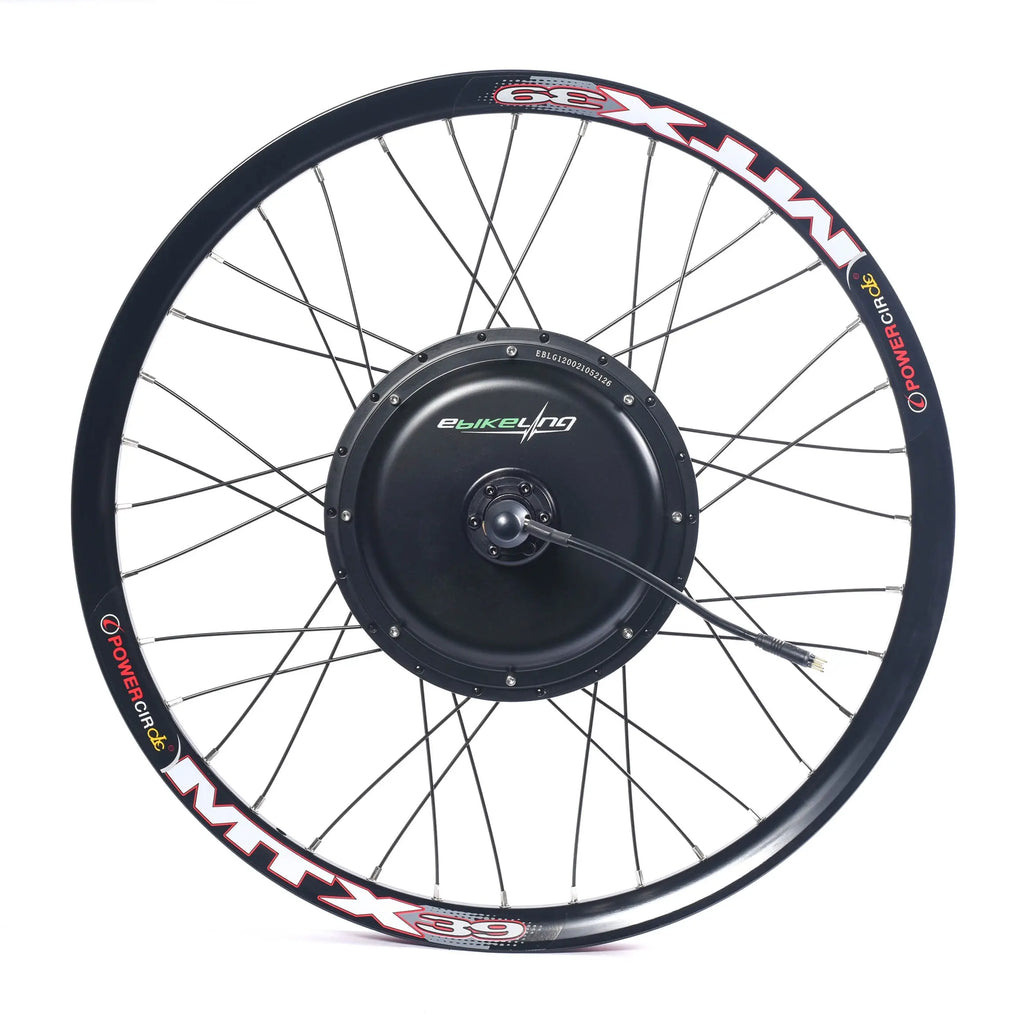

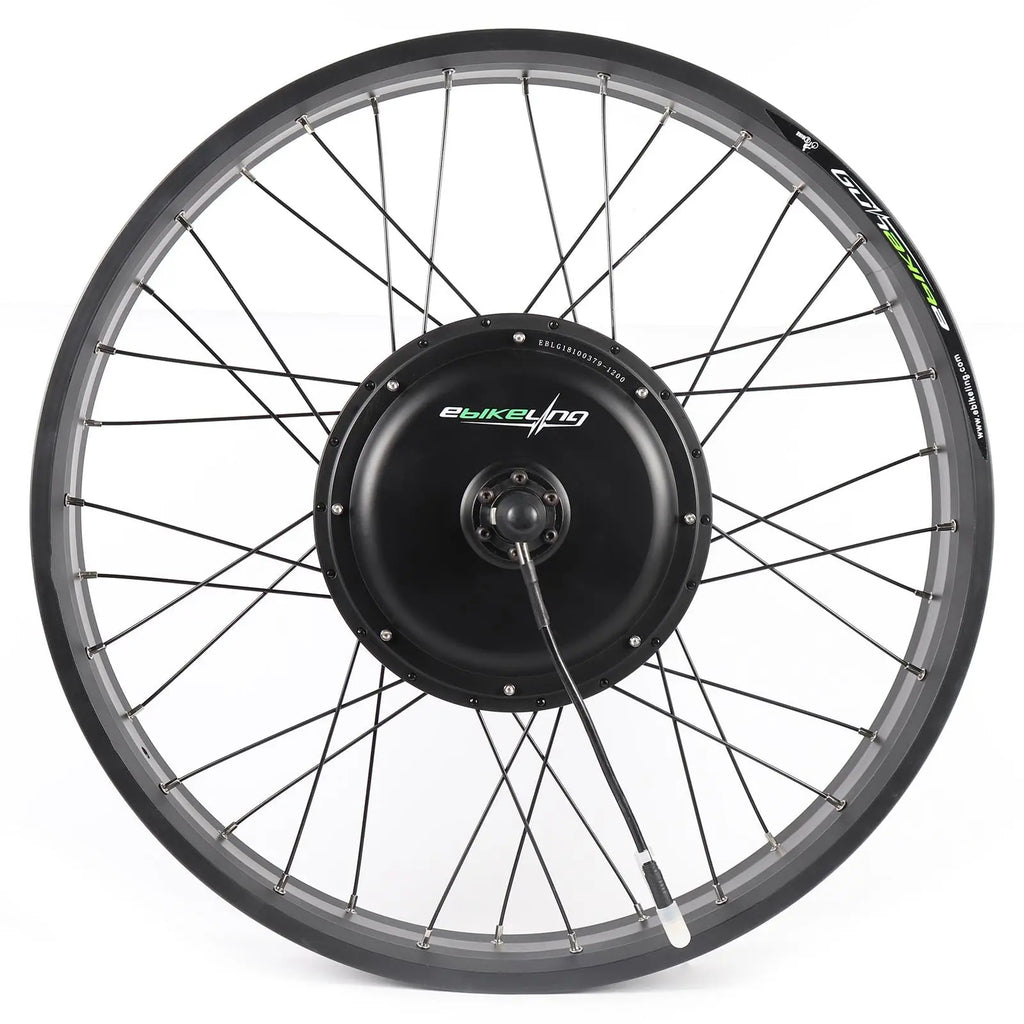

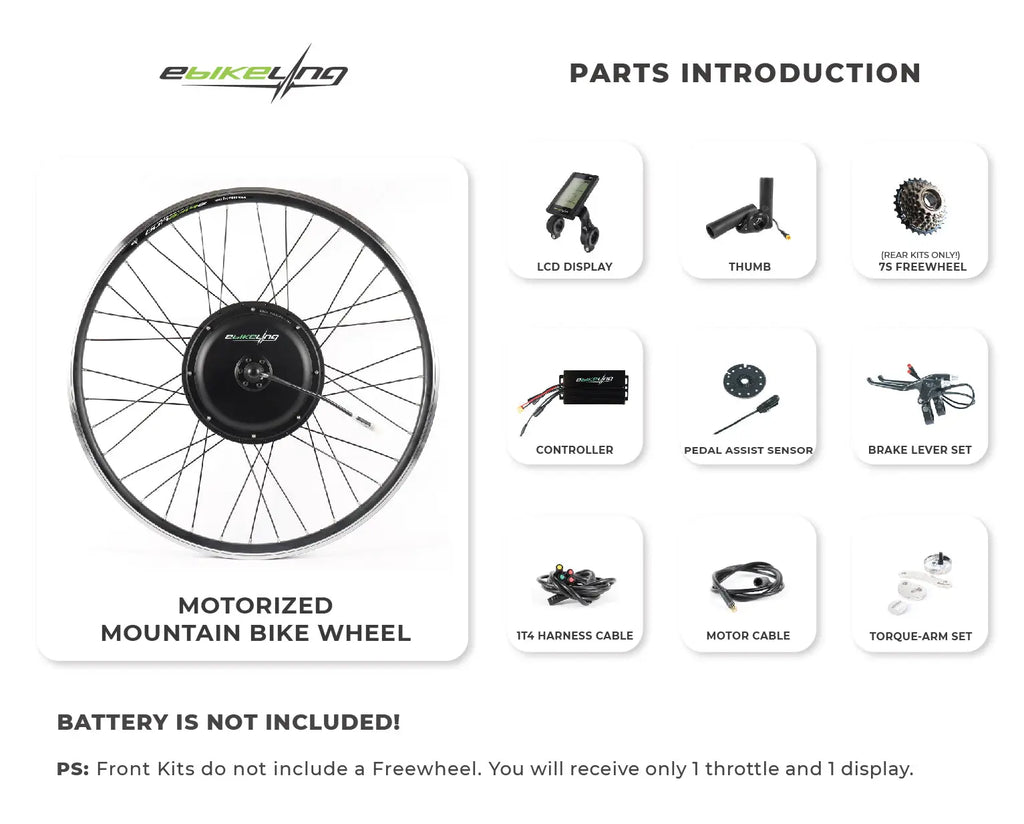

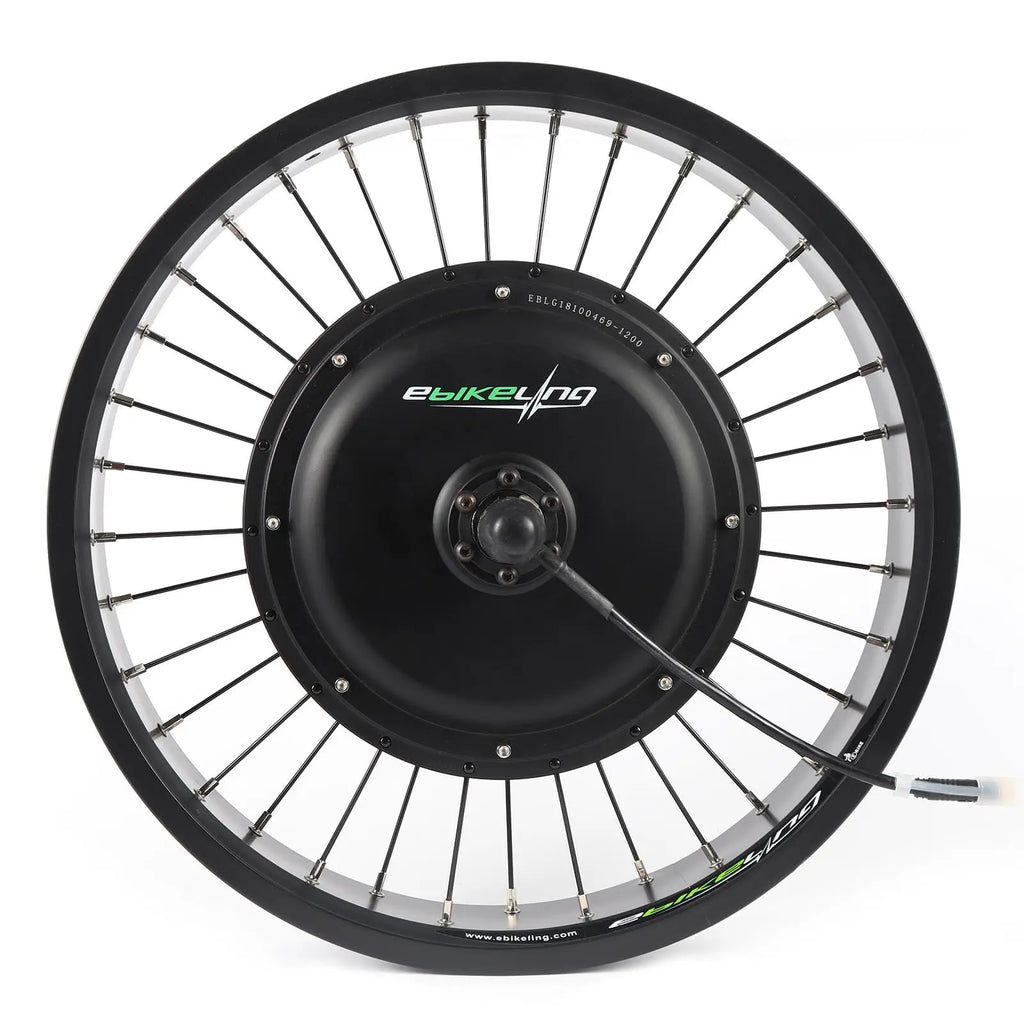

Refurbished 48V 1200W Direct-Drive Ebike Conversion Kits
| UNIT | 1200W 20" | 1200W 24" | 1200W 26" | 1200W 700C | 1200W 20" Fat | 1200W 26" Fat | 1200W 26" MTB | 1200W 700C MTB |
|---|---|---|---|---|---|---|---|---|
| Compatible Tire Width: | 1.75", 1.95", 2.125" | 1.75", 1.95", 2.125" | 1.75", 1.95", 2.125" | 28C, 32C, 35C | 4.0" | 4.0" | 1.95" to 3.0" | 32C, 35C, 38C, 40C |

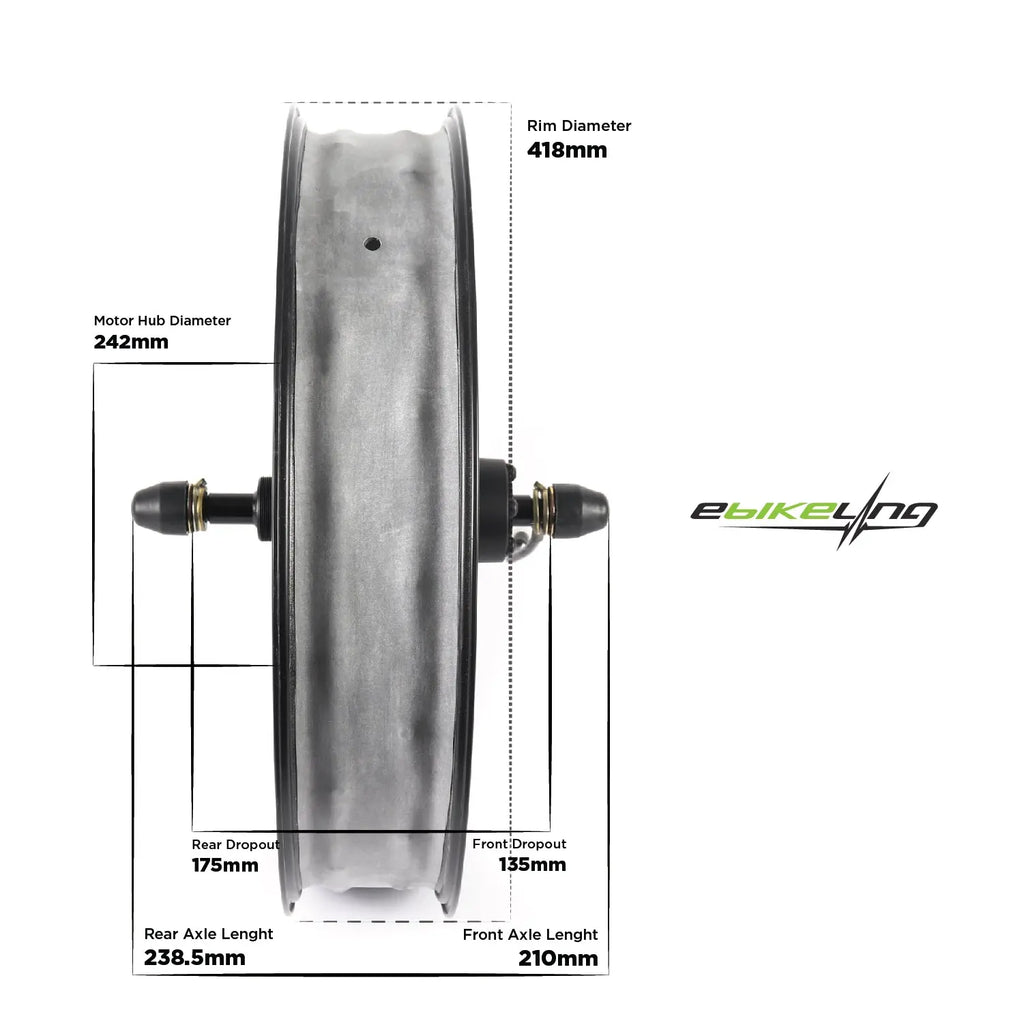

| Rim Width: | 29 mm | 24 mm | 24 mm | 24 mm | 80 mm | 80 mm | 39 mm | 29.6 mm |
| Rim Diameter (Outer): | 420 mm | 520 mm | 572 mm | 633 mm | 418 mm | 572 mm | 572 mm | 633 mm |
| Rim Diameter (Inner): | 370 mm | 474 mm | 522 mm | 583 mm | 380 mm | 535 mm | 517.5 mm | 583 mm |
| Spoke Size: | 72 mm 12G Carbon Steel Copper Nipples | 134 mm 12G Carbon Steel Copper Nipples | 159 mm 12G Carbon Steel Copper Nipples | 188 mm 12G Carbon Steel Copper Nipples | 78 mm 12G Carbon Steel Copper Nipples | 163 mm 12G Carbon Steel Copper Nipples | 159 mm 12G Carbon Steel Copper Nipples | 188 mm 12G Carbon Steel Copper Nipples |
| Rear Dropout: | 135 mm | 132 mm | 132 mm | 132 mm | 175 mm | 175 mm | 132 mm | 132 mm |
| Front Dropout: | 98 mm | 98 mm | 98 mm | - | 135 mm | - | - | |
| Rear Axle Length: | 210 mm | 207 mm | 207 mm | 207 mm | 238.5 | 238.5 | 207 mm | 207 mm |
| Front Axle Length: | 173 mm | 173 mm | 173 mm | - | 210 mm | - | - | |
| Motor/Wheel Weight (lbs): | 15.4 | 14.7 | 12.9 | 12.9 | 15.8 | 15.8 | 12.9 | 12.9 |
| Motor Torque (Peak): | 35Nm Efficiency: >80% | 30Nm Efficiency: >82% | 30Nm Efficiency: >82% | 30Nm Efficiency: >82% | 30Nm Efficiency: >82% | 30Nm Efficiency: >82% | 30Nm Efficiency: >82% | 30Nm Efficiency: >82% |
| Motor RPM (Nominal Speed): | 380 | 430 | 430 | 430 | 430 | 430 | 430 | 430 |
| Motor Hub Diameter: | 242 mm | 242 mm | 242 mm | 242 mm | 242 mm | 242 mm | 242 mm | 242 mm |
| Motor Magnets: | 27 | 46 | 46 | 46 | 46 | 46 | 46 | 46 |
| Peak Power (kW): | 1.4 | 1.45 | 1.45 | 1.45 | 1.45 | 1.45 | 1.45 | 1.45 |
| Operating Mode: | Hall Sensor | Hall Sensor | Hall Sensor | Hall Sensor | Hall Sensor | Hall Sensor | Hall Sensor | Hall Sensor |
| Axle Diameter: | 14 mm | 14 mm | 14 mm | 14 mm | 14 mm | 14 mm | 14 mm | 14 mm |
| Axle Pitch: | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 | 1.5 mm | 1.5 mm | 1.5 mm |
| Axle Flat: | 10 mm | 10 mm | 10 mm | 10 mm | 10 mm | 10 mm | 10 mm | 10 mm |
| Gears (Rear motors only): | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) |
| Pedal Assist: | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable |
| Pedal Assist Sensor: | Cadence | Cadence | Cadence | Cadence | Cadence | Cadence | Cadence | Cadence |
| Motor RPM (No Load): | 480 | 477 | 477 | 477 | 477 | 477 | 477 | 477 |
| Top Speed (mph): | 21 | 24-27 | 24-27 | 27-31 | 19-23 | 24-27 | 24-27 | 27-31 |
| Controller: | 48v/52v 30A | 48v/52v 30A | 48v/52v 30A | 48v/52v 30A | 48v/52v 30A | 48v/52v 30A | 48v/52v 30A | 48v/52v 30A |
| Controller dimensions: | 6.8*2.40*1.55 in | 6.8*2.40*1.55 in | 6.8*2.40*1.55 in | 6.8*2.40*1.55 in | 6.8*2.40*1.55 in | 6.8*2.40*1.55 in | 6.8*2.40*1.55 in | 6.8*2.40*1.55 in |
| Recommended Batteries: | 48v/52v lI-Ion | 48v/52v lI-Ion | 48v/52v lI-Ion | 48v/52v lI-Ion | 48v/52v lI-Ion | 48v/52v lI-Ion | 48v/52v lI-Ion | 48v/52v lI-Ion |
| Battery Connector required: | XT60 Female | XT60 Female | XT60 Female | XT60 Female | XT60 Female | XT60 Female | XT60 Female | XT60 Female |
| Amps (Peak): | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Amps (continuous): | 23-25 | 23-25 | 23-25 | 23-25 | 23-25 | 23-25 | 23-25 | 23-25 |
| Motor Cable Type: | 9 pin Julet Type | 9 pin Julet Type | 9 pin Julet Type | 9 pin Julet Type | 9 pin Julet Type | 9 pin Julet Type | 9 pin Julet Type | 9 pin Julet Type |
| Rear Motor Cable Length: | 36" | 36" | 36" | 36" | 36" | 36" | 36" | 36" |
| Front Motor Cable Length: | 67" | 67" | 67" | 67" | 67" | 67" | 67" | 67" |
| 1T4 Cable Type: | 8 pin Julet Type | 8 pin Julet Type | 8 pin Julet Type | 8 pin Julet Type | 8 pin Julet Type | 8 pin Julet Type | 8 pin Julet Type | 8 pin Julet Type |
| 1T4 Cable Length: | 74" | 74" | 74" | 74" | 74" | 74" | 74" | 74" |
| IP Rating | 65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 |
