Description

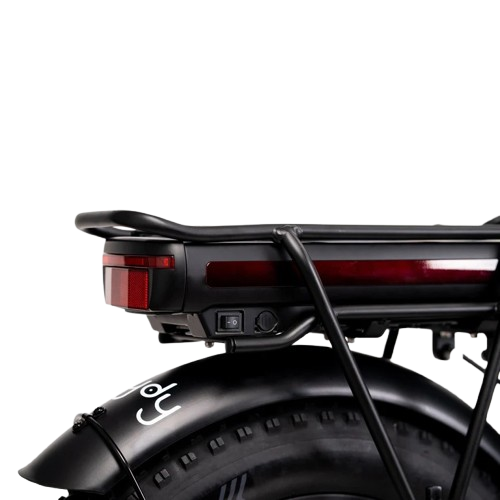

For those looking to extend their range, the FAR™ system is tailored for you! With the option to upgrade to a dual battery system with an extra 9 Ah, you can add a second battery to your bike, mounted on the rear rack. The dual-battery setup offers you the power and range you need to explore without limits.
| Battery: | 48v 15ah lithium battery |
| Freewheel: | 7 speed chain |
| Charger: | AC100V-240V, 2A max (47-63hz) |
| Charging Time: | 4-6 hours |
| Controller: | 48v intelligent controller |
| Fender: | Aluminum alloy front & rear fender |
| Fork: | Aluminum front suspension fork |
| Frame: | 20" foldable aluminum alloy |
| Front light: | Spanninga LED light |
| Front/Rear brake: | Disc Brake Tektro with 6.3 inch |
| Handlebar: | Aluminum alloy handlebar |
| LCD: | Speed, range, distance, time, battery |
| Motor: | 48v 750w rear brushless geared hub motor |
| Packing size: | 40 x 19 x 32 inch |
| PAS: | 12 magnets pedal assistant |
| Pedals: | Foldable pedals |
| Range: | 20+ miles with throttle, 45+ miles with pedal assistant |
| Rear Derailleur Lever: | Outer 7 speed |
| Rear rack: | Aluminum alloy strengthens the rear rack |
| Rim: | 20x4 inch 36h double-wall aluminum rim |
| Seat: | Thickened soft leather removable seat |
| Seat post: | Aluminum alloy 27.2 |
| Speed: | 20+ miles |
| Stem: | Aluminum alloy foldable stem |
| Throttle: | Thumb throttle |
| Tires: | 20x4.0 slide-proof tires |
| Weight (Gross): | 81.6 lbs |
| Weight (Net): | 70.5 lbs |
We aim to process all orders within 1 business day. Orders over $50 qualify for free shipping to the Lower-48 states.
Shipping to Hawaii, Alaska, APO (Army Post Office), FPO (Fleet Post Office), and Puerto Rico is the responsibility of the buyer regardless of the order total.
We offer shipping via USPS, UPS, and FedEx, with express services available at checkout for an additional cost. The estimated delivery time within the US is 2 to 5 business days.
Once your order has been shipped, you will receive an email with a tracking number to monitor the progress of your package(s). Please note that orders exceeding $100 require a signature upon delivery, unless otherwise requested. If you prefer not to sign for your package, please contact us prior to your purchase to arrange for this.
In the event of a failed delivery, your package(s) will either be rescheduled for the next day or transferred to a local USPS/UPS/FedEx office. Pickup will be available for the following 5 business days. Please ensure that the address in your PayPal account matches the delivery address you would like us to use. If you need to change your address, please contact our customer service team to confirm the change.
INTERNATIONAL SHIPMENTS
If you choose to use USPS for international shipments, please note that USPS does not offer tracking or insurance for packages outside of the United States. Buyers are responsible for all shipping costs and duties required by their respective countries. We do not offer any warranty for international orders and shipments. Please check with your local customs office for more information about import fees and regulations.
READY TO RIDE ELECTRIC?
Getting an electric bike is an exciting step, but making the right choice is important. Our electric bikes come with powerful motors and long-lasting batteries, providing you with an enjoyable and sustainable riding experience. Not only do our bikes enhance your riding pleasure, but they also offer an efficient alternative for commuting. Visit our manuals page for more information and to start your journey today!
| UNIT | 500W 20" | 500W 26" | 500W 700C | 500W 26" Fat |
|---|---|---|---|---|
| Compatible Tire Width: | 1.75", 1.95", 2.125" | 1.75", 1.95", 2.125" | 28C, 32C, 35C | 4.0" |
| Rim Width: | 24 mm | 23 mm | 23 mm | 72.2 mm |
| Rim Diameter (Outer): | 419 mm | 572 mm | 633 mm | 572 mm |
| Rim Diameter (Inner): | 369 mm | 522 mm | 583 mm | 535 mm |
| Spoke Size: | 122 mm 12G Carbon Steel Copper Nipples |
214 mm 12G Carbon Steel Copper Nipples |
234 mm 12G Carbon Steel Copper Nipples |
195 mm 12G Carbon Steel Copper Nipples |
| Rear Dropout: | 130 mm | 131 mm | 131 mm | 175 mm |
| Front Dropout: | 100 mm | 100 mm | 100 mm | 135 mm |
| Rear Axle Length: | 199 mm | 199 mm | 199 mm | 250 mm |
| Front Axle Length: | 166 mm | 166 mm | 166 mm | 190 mm |
| Motor/Wheel Weight (lbs): | 8 | 7.4 | 7.4 | 9.04 |
| Motor Torque (Peak): | 35Nm | 40Nm Efficiency: >80% |
40Nm Efficiency: >80% |
40Nm Efficiency: >80% |
| Motor RPM (Nominal Speed): | 260rpm@36V | 300 | 300 | 300 |
| Motor Hub Diameter: | 158 mm | 158 mm | 158 mm | 158 mm |
| Motor Magnets: | 20 | 20 | 20 | 20 |
| Peak Power (kW): | 0.65kW@36V | 0.84 | 0.84 | 0.84 |
| Operating Mode: | Hall Sensor | Hall Sensor | Hall Sensor | Hall Sensor |
| Axle Diameter: | 12 mm | 12 mm | 12 mm | 12 mm |
| Axle Pitch: | 1.25 mm | 1.25 mm | 1.25 mm | 1.25 mm |
| Axle Flat: | 10 mm | 10 mm | 10 mm | 10 mm |
| Gears (Rear motors only): | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) |
| Pedal Assist: | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable |
| Pedal Assist Sensor: | Cadence | Cadence | Cadence | Cadence |
| Motor RPM (No Load): | 300rpm@36V | 333 | 333 | 333 |
| Top Speed (mph): | 18.5mph@36V | 19.5mph@36v | 21-40 | 18-21 |
| Controller: | 36v/48v 22A | 36v/48v 22A | 36v/48v 22A | 36v/48v 22A |
| Controller dimensions: | 5.63*2.4*1.55 in | 5.63*2.4*1.55 in | 5.63*2.4*1.55 in | 5.63*2.4*1.55 in |
| Recommended Batteries: | 36v Li-Ion | 36v Li-Ion | 36v Li-Ion | 36v Li-Ion |
| Battery Connector required: | XT60 Female | XT60 Female | XT60 Female | XT60 Female |
| Amps (Peak): | 22 | 22 | 22 | 22 |
| Amps (continuous): | 15-16 | 15-16 | 15-16 | 15-16 |
| Motor Cable Type: | 9 pin Julet Type | 9 pin Julet Type | 9 pin Julet Type | 9 pin Julet Type |
| Rear Motor Cable Length: | 36" | 36" | 36" | 36" |
| Front Motor Cable Length: | 67" | 67" | 67" | 67" |
| 1T4 Cable Type: | 8 pin Julet Type | 8 pin Julet Type | 8 pin Julet Type | 8 pin Julet Type |
| 1T4 Cable Length: | 74" | 74" | 74" | 74" |
| IP Rating | 65 | 65 | 65 | 65 |
We aim to process all orders within 1 business day. Orders over $50 qualify for free shipping to the Lower-48 states.
Shipping to Hawaii, Alaska, APO (Army Post Office), FPO (Fleet Post Office), and Puerto Rico is the responsibility of the buyer regardless of the order total.
We offer shipping via USPS, UPS, and FedEx, with express services available at checkout for an additional cost. The estimated delivery time within the US is 2 to 5 business days.
Once your order has been shipped, you will receive an email with a tracking number to monitor the progress of your package(s). Please note that orders exceeding $100 require a signature upon delivery, unless otherwise requested. If you prefer not to sign for your package, please contact us prior to your purchase to arrange for this.
In the event of a failed delivery, your package(s) will either be rescheduled for the next day or transferred to a local USPS/UPS/FedEx office. Pickup will be available for the following 5 business days. Please ensure that the address in your PayPal account matches the delivery address you would like us to use. If you need to change your address, please contact our customer service team to confirm the change.
INTERNATIONAL SHIPMENTS
If you choose to use USPS for international shipments, please note that USPS does not offer tracking or insurance for packages outside of the United States. Buyers are responsible for all shipping costs and duties required by their respective countries. We do not offer any warranty for international orders and shipments. Please check with your local customs office for more information about import fees and regulations.
READY TO CONVERT YOUR BIKE?
Converting your bike can be an exciting project, but it can also be overwhelming without proper guidance. Our manuals page offers comprehensive instructions and helpful videos to assist you in the process. Whether you're looking to add an electric motor or upgrade your components, our resources will ensure that you can tackle the task with confidence. Start your bike conversion journey today by visiting our manuals page!
Download Manual
| UNIT | 750W 26" | 750W 700C | 750W 26" MTB | 750W 700C MTB |
|---|---|---|---|---|
| Compatible Tire Width: | 1.75", 1.95", 2.125" | 28C, 32C, 35C | 1.95" to 3.0" | 32C, 35C, 38C, 40C |
| Rim Width: | 23 mm | 23 mm | 31.2 mm | 31.5 mm |
| Rim Diameter (Outer): | 572 mm | 633 mm | 572 mm | 633 mm |
| Rim Diameter (Inner): | 522 mm | 583 mm | 517.5 mm | 583 mm |
| Spoke Size: | 214 mm 12G Carbon Steel Copper Nipples |
243 mm 12G Carbon Steel Copper Nipples |
214 mm 12G Carbon Steel Copper Nipples |
243 mm 12G Carbon Steel Copper Nipples |
| Rear Dropout: | 132 mm | 132 mm | 135 mm | 135 mm |
| Front Dropout: | 94 mm | 94 mm | - | - |
| Rear Axle Length: | 205 mm | 205 mm | 205 mm | 205 mm |
| Front Axle Length: | 160 mm | 160 mm | 160 mm | 160 mm |
| Motor/Wheel Weight (lbs): | 8.5 | 8.5 | 8.5 | 8.5 |
| Motor Torque (Peak): | 50N.m | 50N.m | 50N.m | 50N.m |
| Motor RPM (Nominal Speed): | 260rpm@36V | 260rpm@36V | 260rpm@36V | 260rpm@36V |
| Motor Hub Diameter: | 168 mm | 168 mm | 168 mm | 168 mm |
| Motor Magnets: | 16 | 16 | 16 | 16 |
| Peak Power (kW): | 0.85kW@36V | 0.85kW@36V | 0.85kW@36V | 0.85kW@36V |
| Operating Mode: | Hall Sensor | Hall Sensor | Hall Sensor | Hall Sensor |
| Axle Diameter: | 12 mm | 12 mm | 12 mm | 12 mm |
| Axle Pitch: | 1.25 mm | 1.25 mm | 1.25 mm | 1.25 mm |
| Axle Flat: | 10 mm | 10 mm | 10 mm | 10 mm |
| Gears (Rear motors only): | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) |
| Pedal Assist: | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable |
| Pedal Assist Sensor: | Cadence | Cadence | Cadence | Cadence |
| Motor RPM (No Load): | 300rpm@36V | 300rpm@36V | 300rpm@36V | 300rpm@36V |
| Top Speed (mph): | 19.8mph@36V | 20.8mph@36V | 19.8mph@36V | 20.8mph@36V |
| Controller: | 36v/48v 22A | 36v/48v 22A | 36v/48v 22A | 36v/48v 22A |
| Controller dimensions: | 5.63*2.4*1.55 in | 5.63*2.4*1.55 in | 5.63*2.4*1.55 in | 5.63*2.4*1.55 in |
| Recommended Batteries: | 36v Li-Ion | 36v Li-Ion | 36v Li-Ion | 36v Li-Ion |
| Battery Connector required: | XT60 Female | XT60 Female | XT60 Female | XT60 Female |
| Amps (Peak): | 22 | 22 | 22 | 22 |
| Amps (continuous): | 15-16 | 15-16 | 15-16 | 15-16 |
| Motor Cable Type: | 9 pin Julet Type | 9 pin Julet Type | 9 pin Julet Type | 9 pin Julet Type |
| Rear Motor Cable Length: | 36" | 36" | 36" | 36" |
| Front Motor Cable Length: | 67" | 67" | 67" | 67" |
| 1T4 Cable Type: | 8 pin Julet Type | 8 pin Julet Type | 8 pin Julet Type | 8 pin Julet Type |
| 1T4 Cable Length: | 74" | 74" | 74" | 74" |
| IP Rating | 65 | 65 | 65 | 65 |
We aim to process all orders within 1 business day. Orders over $50 qualify for free shipping to the Lower-48 states.
Shipping to Hawaii, Alaska, APO (Army Post Office), FPO (Fleet Post Office), and Puerto Rico is the responsibility of the buyer regardless of the order total.
We offer shipping via USPS, UPS, and FedEx, with express services available at checkout for an additional cost. The estimated delivery time within the US is 2 to 5 business days.
Once your order has been shipped, you will receive an email with a tracking number to monitor the progress of your package(s). Please note that orders exceeding $100 require a signature upon delivery, unless otherwise requested. If you prefer not to sign for your package, please contact us prior to your purchase to arrange for this.
In the event of a failed delivery, your package(s) will either be rescheduled for the next day or transferred to a local USPS/UPS/FedEx office. Pickup will be available for the following 5 business days. Please ensure that the address in your PayPal account matches the delivery address you would like us to use. If you need to change your address, please contact our customer service team to confirm the change.
INTERNATIONAL SHIPMENTS
If you choose to use USPS for international shipments, please note that USPS does not offer tracking or insurance for packages outside of the United States. Buyers are responsible for all shipping costs and duties required by their respective countries. We do not offer any warranty for international orders and shipments. Please check with your local customs office for more information about import fees and regulations.
READY TO CONVERT YOUR BIKE?
Converting your bike can be an exciting project, but it can also be overwhelming without proper guidance. Our manuals page offers comprehensive instructions and helpful videos to assist you in the process. Whether you're looking to add an electric motor or upgrade your components, our resources will ensure that you can tackle the task with confidence. Start your bike conversion journey today by visiting our manuals page!
Download Manual
| UNIT | 1200W 20" | 1200W 24" | 1200W 26" | 1200W 700C | 1200W 20" Fat | 1200W 26" Fat | 1200W 26" MTB | 1200W 700C MTB |
|---|---|---|---|---|---|---|---|---|
| Compatible Tire Width: | 1.75", 1.95", 2.125" | 1.75", 1.95", 2.125" | 1.75", 1.95", 2.125" | 28C, 32C, 35C | 4.0" | 4.0" | 1.95" to 3.0" | 32C, 35C, 38C, 40C |
| Rim Width: | 24 mm | 24 mm | 23 mm | 23 mm | 72.2 mm | 72.2 mm | 31.2 mm | 29.6 mm |
| Rim Diameter (Outer): | 420 mm | 520 mm | 572 mm | 633 mm | 418 mm | 572 mm | 572 mm | 633 mm |
| Rim Diameter (Inner): | 370 mm | 474 mm | 522 mm | 583 mm | 380 mm | 535 mm | 517.5 mm | 583 mm |
| Spoke Size: | 72 mm 12G Carbon Steel Copper Nipples |
134 mm 12G Carbon Steel Copper Nipples |
159 mm 12G Carbon Steel Copper Nipples |
188 mm 12G Carbon Steel Copper Nipples |
78 mm 12G Carbon Steel Copper Nipples |
163 mm 12G Carbon Steel Copper Nipples |
159 mm 12G Carbon Steel Copper Nipples |
188 mm 12G Carbon Steel Copper Nipples |
| Rear Dropout: | 135 mm | 132 mm | 132 mm | 132 mm | 175 mm | 175 mm | 132 mm | 132 mm |
| Front Dropout: | 98 mm | 98 mm | 98 mm | 98 mm | 135 mm | 135 mm | 135 mm | 135 mm |
| Rear Axle Length: | 210 mm | 207 mm | 207 mm | 207 mm | 238.5 mm | 238.5 mm | 207 mm | 207 mm |
| Front Axle Length: | 173 mm | 173 mm | 173 mm | 173 mm | 210 mm | 210 mm | 173 mm | 173 mm |
| Motor/Wheel Weight (lbs): | 15.4 | 14.7 | 12.9 | 12.9 | 15.8 | 15.8 | 12.9 | 12.9 |
| Motor Torque (Peak): | 35Nm Efficiency: >80% | 30Nm Efficiency: >82% | 30Nm Efficiency: >82% | 30Nm Efficiency: >82% | 30Nm Efficiency: >82% | 30Nm Efficiency: >82% | 30Nm Efficiency: >82% | 30Nm Efficiency: >82% |
| Motor RPM (Nominal Speed): | 380 | 430 | 430 | 430 | 430 | 430 | 430 | 430 |
| Motor Hub Diameter: | 242 mm | 242 mm | 242 mm | 242 mm | 242 mm | 242 mm | 242 mm | 242 mm |
| Motor Magnets: | 27 | 46 | 46 | 46 | 46 | 46 | 46 | 46 |
| Peak Power (kW): | 1.4 | 1.45 | 1.45 | 1.45 | 1.45 | 1.45 | 1.45 | 1.45 |
| Operating Mode: | Hall Sensor | Hall Sensor | Hall Sensor | Hall Sensor | Hall Sensor | Hall Sensor | Hall Sensor | Hall Sensor |
| Axle Diameter: | 14 mm | 14 mm | 14 mm | 14 mm | 14 mm | 14 mm | 14 mm | 14 mm |
| Axle Pitch: | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm |
| Axle Flat: | 10 mm | 10 mm | 10 mm | 10 mm | 10 mm | 10 mm | 10 mm | 10 mm |
| Gears (Rear motors only): | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) |
| Pedal Assist: | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable |
| Pedal Assist Sensor: | Cadence | Cadence | Cadence | Cadence | Cadence | Cadence | Cadence | Cadence |
| Motor RPM (No Load): | 480 | 477 | 477 | 477 | 477 | 477 | 477 | 477 |
| Top Speed (mph): | 21 | 24-27 | 24-27 | 27-31 | 19-23 | 24-27 | 24-27 | 27-31 |
| Controller: | 48v/52v 30A | 48v/52v 30A | 48v/52v 30A | 48v/52v 30A | 48v/52v 30A | 48v/52v 30A | 48v/52v 30A | 48v/52v 30A |
| Controller dimensions: | 6.8*2.40*1.55 in | 6.8*2.40*1.55 in | 6.8*2.40*1.55 in | 6.8*2.40*1.55 in | 6.8*2.40*1.55 in | 6.8*2.40*1.55 in | 6.8*2.40*1.55 in | 6.8*2.40*1.55 in |
| Recommended Batteries: | 48v/52v lI-Ion | 48v/52v lI-Ion | 48v/52v lI-Ion | 48v/52v lI-Ion | 48v/52v lI-Ion | 48v/52v lI-Ion | 48v/52v lI-Ion | 48v/52v lI-Ion |
| Battery Connector required: | XT60 Female | XT60 Female | XT60 Female | XT60 Female | XT60 Female | XT60 Female | XT60 Female | XT60 Female |
| Amps (Peak): | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Amps (continuous): | 23-25 | 23-25 | 23-25 | 23-25 | 23-25 | 23-25 | 23-25 | 23-25 |
| Motor Cable Type: | 9 pin Julet Type | 9 pin Julet Type | 9 pin Julet Type | 9 pin Julet Type | 9 pin Julet Type | 9 pin Julet Type | 9 pin Julet Type | 9 pin Julet Type |
| Rear Motor Cable Length: | 36" | 36" | 36" | 36" | 36" | 36" | 36" | 36" |
| Front Motor Cable Length: | 67" | 67" | 67" | 67" | 67" | 67" | 67" | 67" |
| 1T4 Cable Type: | 8 pin Julet Type | 8 pin Julet Type | 8 pin Julet Type | 8 pin Julet Type | 8 pin Julet Type | 8 pin Julet Type | 8 pin Julet Type | 8 pin Julet Type |
| 1T4 Cable Length: | 74" | 74" | 74" | 74" | 74" | 74" | 74" | 74" |
| IP Rating | 65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 |
We aim to process all orders within 1 business day. Orders over $50 qualify for free shipping to the Lower-48 states.
Shipping to Hawaii, Alaska, APO (Army Post Office), FPO (Fleet Post Office), and Puerto Rico is the responsibility of the buyer regardless of the order total.
We offer shipping via USPS, UPS, and FedEx, with express services available at checkout for an additional cost. The estimated delivery time within the US is 2 to 5 business days.
Once your order has been shipped, you will receive an email with a tracking number to monitor the progress of your package(s). Please note that orders exceeding $100 require a signature upon delivery, unless otherwise requested. If you prefer not to sign for your package, please contact us prior to your purchase to arrange for this.
In the event of a failed delivery, your package(s) will either be rescheduled for the next day or transferred to a local USPS/UPS/FedEx office. Pickup will be available for the following 5 business days. Please ensure that the address in your PayPal account matches the delivery address you would like us to use. If you need to change your address, please contact our customer service team to confirm the change.
INTERNATIONAL SHIPMENTS
If you choose to use USPS for international shipments, please note that USPS does not offer tracking or insurance for packages outside of the United States. Buyers are responsible for all shipping costs and duties required by their respective countries. We do not offer any warranty for international orders and shipments. Please check with your local customs office for more information about import fees and regulations.
READY TO CONVERT YOUR BIKE?
Converting your bike can be an exciting project, but it can also be overwhelming without proper guidance. Our manuals page offers comprehensive instructions and helpful videos to assist you in the process. Whether you're looking to add an electric motor or upgrade your components, our resources will ensure that you can tackle the task with confidence. Start your bike conversion journey today by visiting our manuals page!
Download Manual
| UNIT | 1500W 26" | 1500W 26" MTB | 1500W 26" Fat | 1500W 700C | 1500W 700C MTB |
|---|---|---|---|---|---|
| Compatible Tire Width: | 1.75", 1.95", 2.125" | 1.95" to 3.0" | 4.0" | 28C, 32C, 35C | 32C, 35C, 38C, 40C |
| Rim Width: | 23 mm | 31.2 mm | 72.2 mm | 23 mm | 31.5 mm |
| Rim Diameter (Outer): | 572 mm | 572 mm | 573 mm | 633 mm | 633 mm |
| Rim Diameter (Inner): | 522 mm | 517.5 mm | 524 mm | 583 mm | 583 mm |
| Spoke Size: | 159 mm 12G Carbon Steel Copper Nipples |
159 mm 12G Carbon Steel Copper Nipples |
163 mm 12G Carbon Steel Copper Nipples |
188 mm 12G Carbon Steel Copper Nipples |
188 mm 12G Carbon Steel Copper Nipples |
| Rear Dropout: | 135 mm | 135 mm | 175 mm | 135 mm | 135 mm |
| Front Dropout: | - | - | - | - | - |
| Rear Axle Length: | 209 mm | 209 mm | 238 mm | 209 mm | 209 mm |
| Front Axle Length: | - | - | - | - | - |
| Motor/Wheel Weight (lbs): | 15.3 | 15.3 | 18 | 15.3 | 15.3 |
| Motor Torque (Peak): | 40Nm Efficiency: >82% | 40Nm Efficiency: >82% | 60Nm | 40Nm Efficiency: >82% | 40Nm Efficiency: >82% |
| Motor RPM (Nominal Speed): | 560 | 560 | 460rpm@48V | 560 | 560 |
| Motor Hub Diameter: | 242 mm | 242 mm | 242 mm | 242 mm | 242 mm |
| Motor Magnets: | 46 | 46 | 46 | 46 | 46 |
| Peak Power (kW): | 1.89 | 1.89 | 1.8kW | 1.89 | 1.89 |
| Operating Mode: | Hall Sensor | Hall Sensor | Hall Sensor | Hall Sensor | Hall Sensor |
| Axle Diameter: | 14 mm | 14 mm | 14 mm | 14 mm | 14 mm |
| Axle Pitch: | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm |
| Axle Flat: | 10 mm | 10 mm | 10 mm | 10 mm | 10 mm |
| Gears (Rear motors only): | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) |
| Pedal Assist: | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable |
| Pedal Assist Sensor: | Cadence | Cadence | Cadence | Cadence | Cadence |
| Motor RPM (No Load): | 622 | 622 | 530rpm@48V | 622 | 622 |
| Top Speed (mph): | 34-37 | 34-37 | 27 | 37-40 | 37-40 |
| Controller: | 48v/52v 35A | 48v/52v 35A | 48v/52v 35A | 48v/52v 35A | 48v/52v 35A |
| Controller dimensions: | 8.4*3.27*1.61 in | 8.4*3.27*1.61 in | 8.4*3.27*1.61 in | 8.4*3.27*1.61 in | 8.4*3.27*1.61 in |
| Recommended Batteries: | 48v/52v lI-Ion | 48v/52v lI-Ion | 48v/52v lI-Ion | 48v/52v lI-Ion | 48v/52v lI-Ion |
| Battery Connector required: | XT60 Female | XT60 Female | XT60 Female | XT60 Female | XT60 Female |
| Amps (Peak): | 35 | 35 | 35 | 35 | 35 |
| Amps (continuous): | 25-30 | 25-30 | 25-30 | 25-30 | 25-30 |
| Motor Cable Type: | 9 pin Julet Type | 9 pin Julet Type | 9 pin Julet Type | 9 pin Julet Type | 9 pin Julet Type |
| Rear Motor Cable Length: | 36" | 36" | 36" | 36" | 36" |
| Front Motor Cable Length: | - | - | - | - | - |
| 1T4 Cable Type: | 8 pin Julet Type | 8 pin Julet Type | 8 pin Julet Type | 8 pin Julet Type | 8 pin Julet Type |
| 1T4 Cable Length: | 74" | 74" | 74" | 74" | 74" |
| IP Rating | 65 | 65 | 65 | 65 | 65 |
We aim to process all orders within 1 business day. Orders over $50 qualify for free shipping to the Lower-48 states.
Shipping to Hawaii, Alaska, APO (Army Post Office), FPO (Fleet Post Office), and Puerto Rico is the responsibility of the buyer regardless of the order total.
We offer shipping via USPS, UPS, and FedEx, with express services available at checkout for an additional cost. The estimated delivery time within the US is 2 to 5 business days.
Once your order has been shipped, you will receive an email with a tracking number to monitor the progress of your package(s). Please note that orders exceeding $100 require a signature upon delivery, unless otherwise requested. If you prefer not to sign for your package, please contact us prior to your purchase to arrange for this.
In the event of a failed delivery, your package(s) will either be rescheduled for the next day or transferred to a local USPS/UPS/FedEx office. Pickup will be available for the following 5 business days. Please ensure that the address in your PayPal account matches the delivery address you would like us to use. If you need to change your address, please contact our customer service team to confirm the change.
INTERNATIONAL SHIPMENTS
If you choose to use USPS for international shipments, please note that USPS does not offer tracking or insurance for packages outside of the United States. Buyers are responsible for all shipping costs and duties required by their respective countries. We do not offer any warranty for international orders and shipments. Please check with your local customs office for more information about import fees and regulations.
READY TO CONVERT YOUR BIKE?
Converting your bike can be an exciting project, but it can also be overwhelming without proper guidance. Our manuals page offers comprehensive instructions and helpful videos to assist you in the process. Whether you're looking to add an electric motor or upgrade your components, our resources will ensure that you can tackle the task with confidence. Start your bike conversion journey today by visiting our manuals page!
Download Manual
| UNIT | 2000W 26" MTB | 2000W 27.5" MTB | 2000W 700C MTB |
|---|---|---|---|
| Compatible Tire Width: | 1.95" to 3.0" | 1.95" to 3.0" | 32C, 35C, 38C, 40C |
| Rim Width: | 31.2 mm | 31.2 mm | 31.5 mm |
| Rim Diameter (Outer): | 572 mm | 597 mm | 633 mm |
| Rim Diameter (Inner): | 517.5 mm | 570 mm | 583 mm |
| Spoke Size: | 158 mm 12G Carbon Steel Copper Nipples | 168 mm 12G Carbon Steel Copper Nipples | 188 mm 12G Carbon Steel Copper Nipples |
| Rear Dropout: | 135 mm | 135 mm | 135 mm |
| Rear Axle Length: | 207 mm | 207 mm | 207 mm |
| Motor/Wheel Weight (lbs): | 12.9 | 12.9 | 12.9 |
| Motor Torque (Peak): | 30Nm Efficiency: >82% | 30Nm Efficiency: >82% | 30Nm Efficiency: >82% |
| Motor RPM (Nominal Speed): | 490 | 490 | 489 |
| Motor Hub Diameter: | 242 mm | 242 mm | 242 mm |
| Motor Magnets: | 35H | 35H | 35H |
| Peak Power (kW): | 2.5 | 2.5 | 2.5 |
| Operating Mode: | Hall Sensor | Hall Sensor | Hall Sensor |
| Axle Diameter: | 14 mm | 14 mm | 14 mm |
| Axle Pitch: | 1.5 mm | 1.5 mm | 1.5 mm |
| Axle Flat: | 10 mm | 10 mm | 10 mm |
| Gears (Rear motors only): | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) |
| Pedal Assist: | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable |
| Pedal Assist Sensor: | Cadence | Cadence | Cadence |
| Motor RPM (No Load): | 530 | 530 | 530 |
| Top Speed (mph): | 32-38 | 32-38 | 32-38 |
| Controller: | 52v/60v 50A | 52v/60v 50A | 52v/60v 50A |
| Controller dimensions: | 6.8*2.7*1.6 in | 6.8*2.7*1.6 in | 6.8*2.7*1.6 in |
| Recommended Batteries: | 52v/60V | 52v/60V | 52v/60V |
| Battery Connector required: | XT90 Female | XT90 Female | XT90 Female |
| Amps (Peak): | 50 | 50 | 50 |
| Amps (continuous): | 45 | 45 | 45 |
| Motor Cable Type: | 5.5mm pins | 5.5mm pins | 5.5mm pins |
| Rear Motor Cable Length: | 36" | 36" | 36" |
| IP Rating | 65 | 65 | 65 |
We aim to process all orders within 1 business day. Orders over $50 qualify for free shipping to the Lower-48 states.
Shipping to Hawaii, Alaska, APO (Army Post Office), FPO (Fleet Post Office), and Puerto Rico is the responsibility of the buyer regardless of the order total.
We offer shipping via USPS, UPS, and FedEx, with express services available at checkout for an additional cost. The estimated delivery time within the US is 2 to 5 business days.
Once your order has been shipped, you will receive an email with a tracking number to monitor the progress of your package(s). Please note that orders exceeding $100 require a signature upon delivery, unless otherwise requested. If you prefer not to sign for your package, please contact us prior to your purchase to arrange for this.
In the event of a failed delivery, your package(s) will either be rescheduled for the next day or transferred to a local USPS/UPS/FedEx office. Pickup will be available for the following 5 business days. Please ensure that the address in your PayPal account matches the delivery address you would like us to use. If you need to change your address, please contact our customer service team to confirm the change.
INTERNATIONAL SHIPMENTS
If you choose to use USPS for international shipments, please note that USPS does not offer tracking or insurance for packages outside of the United States. Buyers are responsible for all shipping costs and duties required by their respective countries. We do not offer any warranty for international orders and shipments. Please check with your local customs office for more information about import fees and regulations.
READY TO CONVERT YOUR BIKE?
Converting your bike can be an exciting project, but it can also be overwhelming without proper guidance. Our manuals page offers comprehensive instructions and helpful videos to assist you in the process. Whether you're looking to add an electric motor or upgrade your components, our resources will ensure that you can tackle the task with confidence. Start your bike conversion journey today by visiting our manuals page!
Download Manual
| UNIT | 3000W 20" FAT | 3000W 26" | 3000W 26" FAT | 3000W 29" |
|---|---|---|---|---|
| Compatible Tire Width: | 4.0" | 2.1", 2.125", 2.3", 2.5", 3" | 4.0" | 32C, 35C, 38C, 40C |
| Rim Width: | 72.2 mm | 31.2 mm | 72.2 mm | 29.6 mm |
| Rim Diameter (Outer): | 418 mm | 572 mm | 572 mm | 633 mm |
| Rim Diameter (Inner): | 380 mm | 522 mm | 535 mm | 583 mm |
| Spoke Size: | 72 mm 12G Carbon Steel Copper Nipples | 159 mm 12G Carbon Steel Copper Nipples | 12G Carbon Steel Copper Nipples | 188 mm 12G Carbon Steel Copper Nipples |
| Rear Dropout: | 172 mm | 150 mm | 172 mm | 150 mm |
| Rear Axle Length: | 238 mm | 234 mm | 238 mm | 234 mm |
| Motor/Wheel Weight (lbs): | 25.3 | 25.3 | 25.3 | 25.3 |
| Motor Torque (Peak): | 110Nm | 110Nm | 110Nm | 110Nm |
| Motor RPM (Nominal Speed): | 840@72V | 840@72V | 840@72V | 840@72V |
| Motor Hub Diameter: | 242 mm | 242 mm | 242 mm | 242 mm |
| Motor Magnets: | 45H | 45H | 45H | 45H |
| Peak Power (kW): | 4 | 4 | 4 | 4 |
| Operating Mode: | Hall Sensor | Hall Sensor | Hall Sensor | Hall Sensor |
| Axle Diameter: | 16 mm | 16 mm | 16 mm | 16 mm |
| Axle Pitch: | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm |
| Axle Flat: | 10 mm | 10 mm | 10 mm | 10 mm |
| Gears (Rear motors only): | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) |
| Pedal Assist: | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable |
| Pedal Assist Sensor: | Cadence | Cadence | Cadence | Cadence |
| Motor RPM (No Load): | 900@72V | 900@72V | 900@72V | 900@72V |
| Top Speed (mph): | 55-58 | 52-55 | 55-58 | 55-58 |
| Controller: | 48v/72v 60A | 48v/72v 60A | 48v/72v 60A | 48v/72v 60A |
| Controller dimensions: | 8.35*4.53*2.1 in | 8.35*4.53*2.1 in | 8.35*4.53*2.1 in | 8.35*4.53*2.1 in |
| Recommended Batteries: | 48v/52v/60v/72v | 48v/52v/60v/72v | 48v/52v/60v/72v | 48v/52v/60v/72v |
| Battery Connector required: | XT90 female | XT90 female | XT90 female | XT90 female |
| Amps (Peak): | 60 | 60 | 60 | 60 |
| Amps (continuous): | 50-55 | 50-55 | 50-55 | 50-55 |
| Motor Cable Type: | 5 pin Molex | 5 pin Molex | 5 pin Molex | 5 pin Molex |
| IP Rating | 65 | 65 | 65 | 65 |
We aim to process all orders within 1 business day. Orders over $50 qualify for free shipping to the Lower-48 states.
Shipping to Hawaii, Alaska, APO (Army Post Office), FPO (Fleet Post Office), and Puerto Rico is the responsibility of the buyer regardless of the order total.
We offer shipping via USPS, UPS, and FedEx, with express services available at checkout for an additional cost. The estimated delivery time within the US is 2 to 5 business days.
Once your order has been shipped, you will receive an email with a tracking number to monitor the progress of your package(s). Please note that orders exceeding $100 require a signature upon delivery, unless otherwise requested. If you prefer not to sign for your package, please contact us prior to your purchase to arrange for this.
In the event of a failed delivery, your package(s) will either be rescheduled for the next day or transferred to a local USPS/UPS/FedEx office. Pickup will be available for the following 5 business days. Please ensure that the address in your PayPal account matches the delivery address you would like us to use. If you need to change your address, please contact our customer service team to confirm the change.
INTERNATIONAL SHIPMENTS
If you choose to use USPS for international shipments, please note that USPS does not offer tracking or insurance for packages outside of the United States. Buyers are responsible for all shipping costs and duties required by their respective countries. We do not offer any warranty for international orders and shipments. Please check with your local customs office for more information about import fees and regulations.
READY TO CONVERT YOUR BIKE?
Converting your bike can be an exciting project, but it can also be overwhelming without proper guidance. Our manuals page offers comprehensive instructions and helpful videos to assist you in the process. Whether you're looking to add an electric motor or upgrade your components, our resources will ensure that you can tackle the task with confidence. Start your bike conversion journey today by visiting our manuals page!
Download Manual
EMPOWER YOUR RIDE, EMBRACE YOUR ADVENTURE.
Ride with confidence and take on any terrain with our powerful electric bike conversion kits. Engineered with the highest quality materials, eBikeling is designed to handle any adventure, whether you're cruising through the city streets or exploring the great outdoors.
Take control of your journey and go wherever the road takes you with eBikeling.
Rear Conversion Kit Installation Tutorial
Looking to upgrade your bike to an electric one? Check out our installation video for the eBikeling conversion kit, designed to make transforming your bike into an electric powerhouse a breeze. In this step-by-step tutorial, we'll guide you through the process of installing the kit, including everything from attaching the motor to wiring up the battery.
