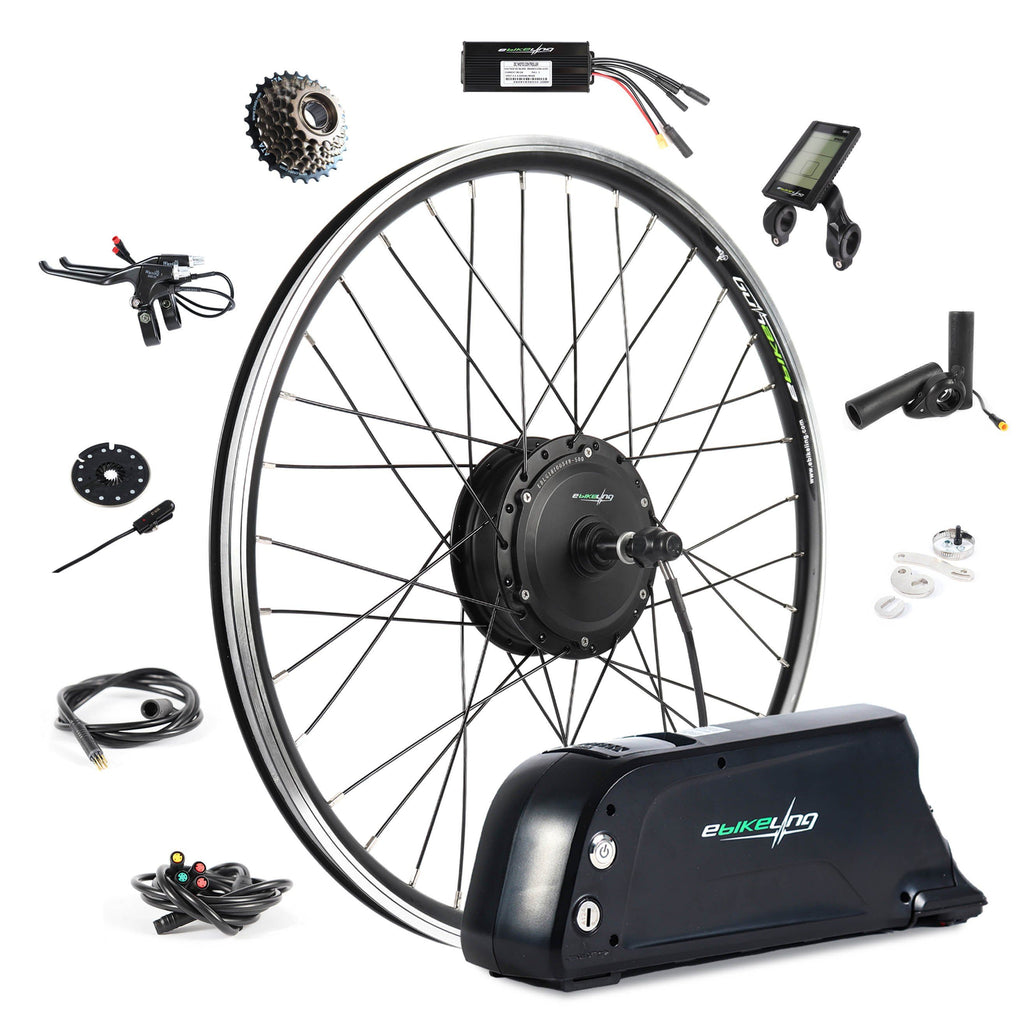

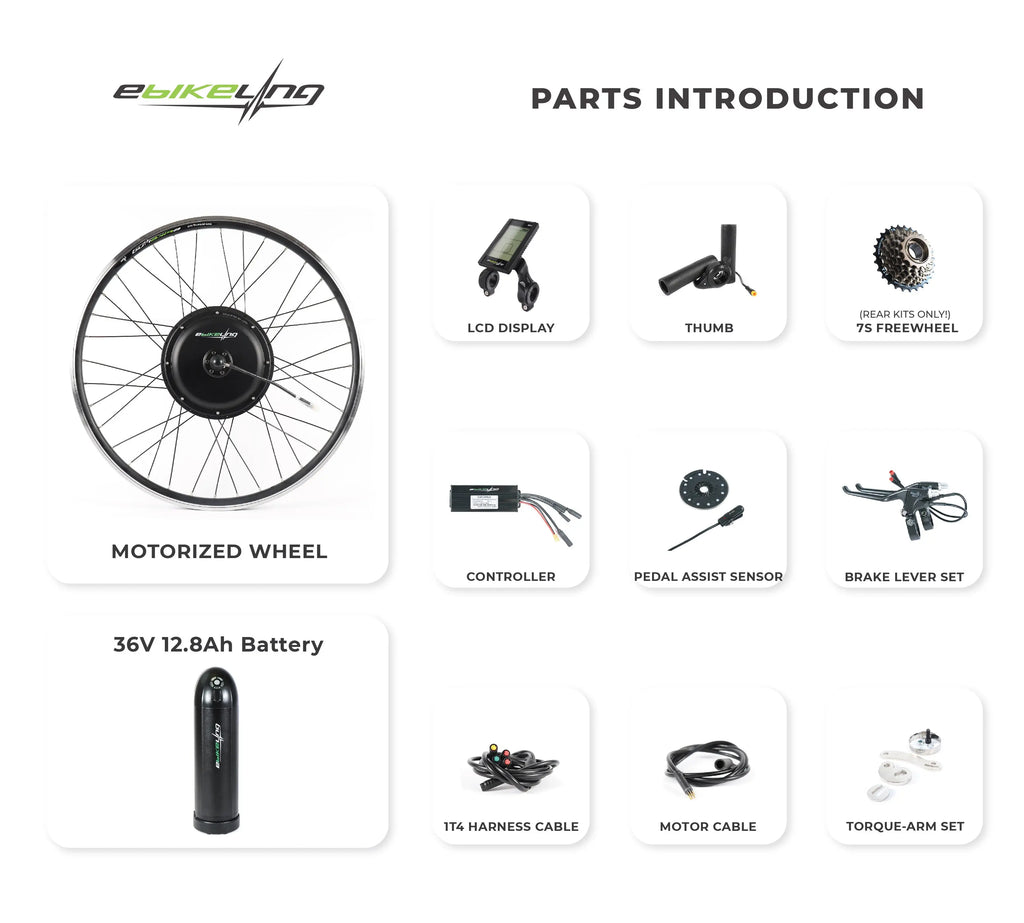

36V 500W Geared Ebike Conversion Kits

SKU: C-20-500-R-1067

$349.99
Mount
Size
Battery
Specifications +
UNIT 500W 20" 500W 26" 500W 700C 500W 26" Fat
Compatible Tire Width: 1.75", 1.95", 2.125" 1.75", 1.95", 2.125" 28C, 32C, 35C 4.0"
Rim Width: 24 mm 24 mm 24 mm 80 mm
Rim Diameter (Outer): 419 mm 572 mm 633 mm 572 mm
Rim Diameter (Inner): 369 mm 522 mm 583 mm 535 mm
Spoke Size: 122 mm 12G Carbon Steel Copper Nipples 214 mm 12G Carbon Steel Copper Nipples 234 mm 12G Carbon Steel Copper Nipples 195 mm 12G Carbon Steel Copper Nipples
Rear Dropout: 135 mm 135 mm 135 mm 175 mm
Front Dropout: 100 mm 101 mm 101 mm 135 mm
Rear Axle Length: 199 mm 199 mm 199 mm 250 mm
Front Axle Length: 165 mm 165 mm 165 mm 190 mm
Motor/Wheel Weight (lbs): 8 7.4 7.4 9.04
Motor Torque (Peak): 35Nm 40Nm Efficiency: >80% 40Nm Efficiency: >80% 40Nm Efficiency: >80%
Motor RPM (Nominal Speed): 260rpm@36V 300 300 300
Motor Hub Diameter: 158 mm 158 mm 158 mm 158 mm
Motor Magnets: 20 20 20 20
Peak Power (kW): 0.65kW@36V 0.84 0.84 0.84
Operating Mode: Hall Sensor Hall Sensor Hall Sensor Hall Sensor
Axle Diameter: 12 mm 12 mm 12 mm 12 mm
Axle Pitch: 1.25 mm 1.25 mm 1.25 mm 1.25 mm
Axle Flat: 10 mm 10 mm 10 mm 10 mm
Gears (Rear motors only): 7 Speed Freewheel (Not a cassette) 7 Speed Freewheel (Not a cassette) 7 Speed Freewheel (Not a cassette) 7 Speed Freewheel (Not a cassette)
Pedal Assist: 3, 5, 9 Level Adjustable 3, 5, 9 Level Adjustable 3, 5, 9 Level Adjustable 3, 5, 9 Level Adjustable
Pedal Assist Sensor: Cadence Cadence Cadence Cadence
Motor RPM (No Load): 300rpm@36V 333 333 333
Top Speed (mph): 18.5mph@36V 19.5mph@36v 21-40 18-21
Controller: 36v/48v 22A 36v/48v 22A 36v/48v 22A 36v/48v 22A
Controller dimensions: 5.63*2.4*1.55 in 5.63*2.4*1.55 in 5.63*2.4*1.55 in 5.63*2.4*1.55 in
Recommended Batteries: 36v Li-Ion 36v Li-Ion 36v Li-Ion 36v Li-Ion
Battery Connector required: XT60 Female XT60 Female XT60 Female XT60 Female
Amps (Peak): 22 22 22 22
Amps (continuous): 15-16 15-16 15-16 15-16
Motor Cable Type: 9 pin Julet Type 9 pin Julet Type 9 pin Julet Type 9 pin Julet Type
Rear Motor Cable Length: 36" 36" 36" 36"
Front Motor Cable Length: 67" 67" 67" 67"
1T4 Cable Type: 8 pin Julet Type 8 pin Julet Type 8 pin Julet Type 8 pin Julet Type
1T4 Cable Length: 74" 74" 74" 74"
IP Rating 65 65 65 65
