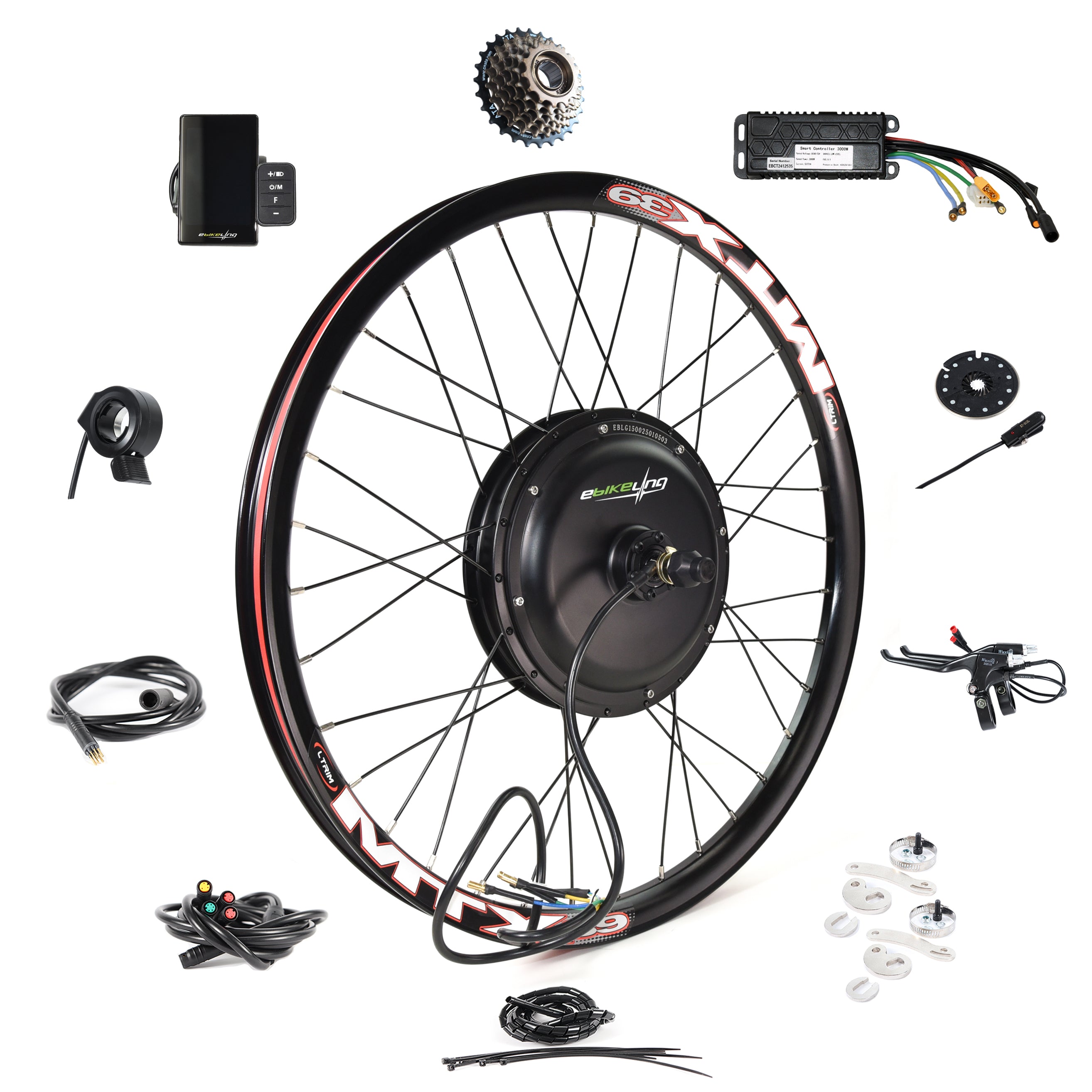

2000W Direct-Drive Ebike Conversion Kit
Helmet – D.O.T. Approved
$73.99
Phone Holder
$14.99
Ebike Headlight
$29.99
Suspension Seat
$19.87
Bike Saddle Bag
$11.99
Bike Pannier Bag
$24.99
Half Twist Throttle
$26.99
Suspension Seat Post
$29.99
Description
SPECIFICATIONS
| UNIT | 2000W 26" MTB | 2000W 27.5" MTB | 2000W 700C MTB |
|---|---|---|---|
| Compatible Tire Width: | 1.95" to 3.0" | 1.95" to 3.0" | 32C, 35C, 38C, 40C |
| Rim Width: | 39 mm | 39 mm | 39 mm |
| Rim Diameter (Outer): | 572 mm | 597 mm | 633 mm |
| Rim Diameter (Inner): | 517.5 mm | 570 | 583 mm |
| Spoke Size: | 158 mm 12G Carbon Steel Copper Nipples | 168 mm 12G Carbon Steel Copper Nipples | 188 mm 12G Carbon Steel Copper Nipples |
| Rear Dropout: | 135 mm | 135 mm | 135 mm |
| Rear Axle Length: | 207 mm | 207 mm | 207 mm |
| Motor/Wheel Weight (lbs): | 12.9 | 12.9 | 12.9 |
| Motor Torque (Peak): | 30Nm Efficiency: >82% | 30Nm Efficiency: >82% | 30Nm Efficiency: >82% |
| Motor RPM (Nominal Speed): | 490 | 490 | 489 |
| Motor Hub Diameter: | 242 mm | 242 mm | 242 mm |
| Motor Magnets: | 35H | 35H | 35H |
| Peak Power (kW): | 2.5 | 2.5 | 2.5 |
| Operating Mode: | Hall Sensor | Hall Sensor | Hall Sensor |
| Axle Diameter: | 14 mm | 14 mm | 14 mm |
| Axle Pitch: | 1.5 mm | 1.5 mm | 1.5 mm |
| Axle Flat: | 10 mm | 10 mm | 10 mm |
| Gears (Rear motors only): | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) |
| Pedal Assist: | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable |
| Pedal Assist Sensor: | Cadence | Cadence | Cadence |
| Motor RPM (No Load): | 530 | 530 | 530 |
| Top Speed (mph): | 32-38 | 32-38 | 32-38 |
| Controller: | 52v/60v 50A | 52v/60v 50A | 52v/60v 50A |
| Controller dimensions: | 6.8*2.7*1.6 in | 6.8*2.7*1.6 in | 6.8*2.7*1.6 in |
| Recommended Batteries: | 52v/60V | 52v/60V | 52v/60V |
| Battery Connector required: | XT90 Female | XT90 Female | XT90 Female |
| Amps (Peak): | 50 | 50 | 50 |
| Amps (continuous): | 45 | 45 | 45 |
| Motor Cable Type: | 5.5mm pins | 5.5mm pins | 5.5mm pins |
| Rear Motor Cable Length: | 36" | 36" | 36" |
| IP Rating: | 65 | 65 | 65 |
SHIPPING
All orders are processed within 1 business day. We offer free shipping, to Lower-48 states, on all orders over $50. Regardless of order total, shipping to Hawaii, Alaska, APO, FPO, and Puerto Rico shall be the responsibility of the buyer. Orders are shipped via USPS and FedEx. Express services are available at checkout.
Once your order has been shipped, you will receive an email informing you of your package(s) being shipped along with a tracking number.
A signature is requested for any order total exceeding $100. If you wish, please contact us prior to your purchase to request removal of a signature upon delivery. In the event of a failed delivery, your package(s) will either be rescheduled the next day or be transferred to a local USPS/FedEx office. Pickup will be available for the following 5 business days.
We only ship to confirmed addresses provided by PayPal. Please make sure your address in PayPal matches the address you would like us to deliver.
Address changes must be confirmed by our customer service.
INTERNATIONAL SHIPMENTS
If you use USPS please be informed that USPS has neither tracking nor insurance for your package(s) outside of the United States.
Buyers are responsible for shipping costs and for duties of their countries.
We do not offer warranty for international shipments.
DISCLAIMER
The aluminum double-walled rim and hub motor are already attached, all you need to do is put your tire to the motor wheel.
The wheel axle diameter is 10 mm. Steel forks can be filed if the axle does not fit into the dropout because of its slightly larger diameter. Please do not file more than necessary and make sure that it does not damage the forks. Aluminum forks can also be filed, with extra caution.
Aluminum rims have openings for a schrader-type valve.
| UNIT | 2000W 26" MTB | 2000W 27.5" MTB | 2000W 700C MTB |
|---|---|---|---|
| Compatible Tire Width: | 1.95" to 3.0" | 1.95" to 3.0" | 32C, 35C, 38C, 40C |
| Rim Width: | 39 mm | 39 mm | 39 mm |
| Rim Diameter (Outer): | 572 mm | 597 mm | 633 mm |
| Rim Diameter (Inner): | 517.5 mm | 570 | 583 mm |
| Spoke Size: | 158 mm 12G Carbon Steel Copper Nipples | 168 mm 12G Carbon Steel Copper Nipples | 188 mm 12G Carbon Steel Copper Nipples |
| Rear Dropout: | 135 mm | 135 mm | 135 mm |
| Rear Axle Length: | 207 mm | 207 mm | 207 mm |
| Motor/Wheel Weight (lbs): | 12.9 | 12.9 | 12.9 |
| Motor Torque (Peak): | 30Nm Efficiency: >82% | 30Nm Efficiency: >82% | 30Nm Efficiency: >82% |
| Motor RPM (Nominal Speed): | 490 | 490 | 489 |
| Motor Hub Diameter: | 242 mm | 242 mm | 242 mm |
| Motor Magnets: | 35H | 35H | 35H |
| Peak Power (kW): | 2.5 | 2.5 | 2.5 |
| Operating Mode: | Hall Sensor | Hall Sensor | Hall Sensor |
| Axle Diameter: | 14 mm | 14 mm | 14 mm |
| Axle Pitch: | 1.5 mm | 1.5 mm | 1.5 mm |
| Axle Flat: | 10 mm | 10 mm | 10 mm |
| Gears (Rear motors only): | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) | 7 Speed Freewheel (Not a cassette) |
| Pedal Assist: | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable | 3, 5, 9 Level Adjustable |
| Pedal Assist Sensor: | Cadence | Cadence | Cadence |
| Motor RPM (No Load): | 530 | 530 | 530 |
| Top Speed (mph): | 32-38 | 32-38 | 32-38 |
| Controller: | 52v/60v 50A | 52v/60v 50A | 52v/60v 50A |
| Controller dimensions: | 6.8*2.7*1.6 in | 6.8*2.7*1.6 in | 6.8*2.7*1.6 in |
| Recommended Batteries: | 52v/60V | 52v/60V | 52v/60V |
| Battery Connector required: | XT90 Female | XT90 Female | XT90 Female |
| Amps (Peak): | 50 | 50 | 50 |
| Amps (continuous): | 45 | 45 | 45 |
| Motor Cable Type: | 5.5mm pins | 5.5mm pins | 5.5mm pins |
| Rear Motor Cable Length: | 36" | 36" | 36" |
| IP Rating: | 65 | 65 | 65 |
We aim to process all orders within 1 business day. Orders over $50 qualify for free shipping to the Lower-48 states.
Shipping to Hawaii, Alaska, APO (Army Post Office), FPO (Fleet Post Office), and Puerto Rico is the responsibility of the buyer regardless of the order total.
We offer shipping via USPS, UPS, and FedEx, with express services available at checkout for an additional cost. The estimated delivery time within the US is 2 to 5 business days.
Once your order has been shipped, you will receive an email with a tracking number to monitor the progress of your package(s). Please note that orders exceeding $100 require a signature upon delivery, unless otherwise requested. If you prefer not to sign for your package, please contact us prior to your purchase to arrange for this.
In the event of a failed delivery, your package(s) will either be rescheduled for the next day or transferred to a local USPS/UPS/FedEx office. Pickup will be available for the following 5 business days. Please ensure that the address in your PayPal account matches the delivery address you would like us to use. If you need to change your address, please contact our customer service team to confirm the change.
INTERNATIONAL SHIPMENTS
If you choose to use USPS for international shipments, please note that USPS does not offer tracking or insurance for packages outside of the United States. Buyers are responsible for all shipping costs and duties required by their respective countries. We do not offer any warranty for international orders and shipments. Please check with your local customs office for more information about import fees and regulations.
READY TO CONVERT YOUR BIKE?
Converting your bike can be an exciting project, but it can also be overwhelming without proper guidance. Our manuals page offers comprehensive instructions and helpful videos to assist you in the process. Whether you're looking to add an electric motor or upgrade your components, our resources will ensure that you can tackle the task with confidence. Start your bike conversion journey today by visiting our manuals page!
Download Manual
EMPOWER YOUR RIDE, EMBRACE YOUR ADVENTURE.
Ride with confidence and take on any terrain with our powerful electric bike conversion kits. Engineered with the highest quality materials, eBikeling is designed to handle any adventure, whether you're cruising through the city streets or exploring the great outdoors.
Take control of your journey and go wherever the road takes you with eBikeling.
Rear Conversion Kit Installation Tutorial
Looking to upgrade your bike to an electric one? Check out our installation video for the eBikeling conversion kit, designed to make transforming your bike into an electric powerhouse a breeze. In this step-by-step tutorial, we'll guide you through the process of installing the kit, including everything from attaching the motor to wiring up the battery.
